Humidity：40~95%RH Capacity：150L~500L
Read more
TEMP: 2-14℃
Capacity：250~500LItem NO.:
250-500BCProduct Origin:
CHINA

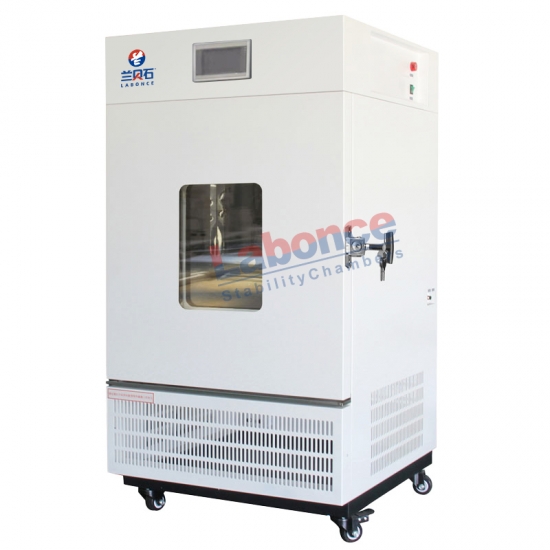

Labonce-BC series medicine preservation chamber is mainly used for preserving medicines, reagents, vaccines, biological products, blood products, etc. The temperature range is 2-8℃, which consists of refrigeration system, digital temperature control system, air circulation system, temperature sensor and so on. It is composed of refrigeration system, digital temperature control system, air circulation system, temperature sensor, etc. It can be operated by adjusting the temperature to the optimal refrigeration temperature according to the required settings. When the temperature inside the chamber is higher than the set temperature, the temperature will be automatically adjusted to the required temperature through the refrigeration system, and there is an alarm for temperature exceeding the standard.
(Labonce-BC series medicine preservation chamber since August 8, 2018 to update the structure design and performance configuration, specific as follows)
1. Door seal: abandon the magnetic refrigerator door seal, instead of silicone door seal plus hand, to solve the problem of air leakage.
2. Insulation: thickening, better uniformity in the box; 3. observation window: abandon the magnetic refrigerator door seal, replaced by a silicone door seal puller, to solve the problem of air leakage; 2.
3. Observation window: abandoned, in order to better uniformity (optional built-in glass door, but built-in glass door in different seasons may produce condensation)
4. Door lock: new, drug safety protection
5. Casters: new, easy to move
6. Controller: the original imported ST590
7. Remote alarm: the new addition of cell phone text message alarm, a number can be managed more than one, up to 15 units
8. Refrigeration system: the biggest update, using two compressors in parallel process, sub-main and vice compressor, in the case of the main compressor work, if the temperature inside the box exceeds 8 ℃ (indicating that the main compressor abnormalities), the system automatically opens the vice compressor refrigeration to maintain the operation of the equipment, and at the same time, send out a text message to the police.
❶ Internal volume: 250L~500L
❷ Temperature control range: 2 ~ 14 ℃, temperature fluctuation: ± 1 ℃, temperature deviation: ± 2.0 ℃;
❸ Temperature controller: imported digital display controller, high precision, low drift;
❹ Refrigeration compressor: imported hermetic compressor, divided into primary and secondary dual machine work, long life, low noise;
❺ Data printing: can print the temperature value and curve at the same time;
❻ Data storage: can store more than 1 year temperature history data;
❼ On-site alarm: beep alarm for temperature deviation on-site;
❽ Remote alarm: remote cell phone SMS alarm (with power failure alarm), multiple devices can share a cell phone card;
❾ Chamber material: the inner liner material for mirror stainless steel 304, shell material for high-quality steel spray;
❿ Double protection: configure the main and vice compressor double insurance protection;
⓫ Safety devices: compressor overheating protection, compressor overpressure protection, compressor overload protection and fan overheating protection;
⓬ Installation power: AC 220V±10% 50Hz;
⓭ Special Note: Consult the PDF and WORD icons below to download the color pages of this page.
|
Name |
Model |
Temperature Range ( ℃ ) |
Capacity (L) |
Interior Dimensions W×D×H(mm) |
External Dimensions W×D×H(mm) |
Power ( kW ) |
Shelf (Standard) |
Remarks |
|
Storage Chamber (2~14℃) |
Labonce-250BC |
2~14 |
250 |
600×500×830 |
780×880×1650 |
0.6 |
3 |
With observation window |
|
Labonce-400BC |
2~14 |
400 |
600×700×950 |
780×1060×1750 |
0.8 |
3 |
||
|
Labonce-500BC |
2~14 |
500 |
680×680×1080 |
860×1050×1850 |
1.0 |
4 |
||
|
Labonce-800BC |
2~14 |
800 |
1200×490×1360 |
1390×890×1960 |
1.2 |
4 |
||
|
Labonce-1000BC |
2~14 |
1000 |
1400×510×1400 |
1590×890×1980 |
1.5 |
4 |
Low-temperature Stability Chamber(BC/RC/FC Series)
Labonce -C Series Low -temperature Stability Chamber,Adopt the brand - new air-way structural design, select the original imported high quality parts and manufacturing process, ensure the long -term continuous operation of the equipment, stable and reliable performance, suitable for temperature sensitive medicine stability test and preservation. ◆ Reference Standard：Medical refrigerator industry standard: YY/T 0086-2020; ◆ Air-way System: The newly air-way system designed achieves uniform of temperature form different parts inside the chamber; ◆ Insulation material: Overall high-density polyurethane foam technology, with good insulation and moisture retention performance; ◆ Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304, no pollution source, easy to clean; ◆ Refrigeration system：Imported fully enclosed industrial compressor, high efficiency, low noise, long life; ◆ Control system：Original imported digital display controller, high precision, low drift; ◆ Safety device: compressor overheat and overpressure overload protection; ◆ Alarm system：On-site beeping alarm; ◆ Other configuration：Test hole、Rubber plug、Mobile casters、Door lock; ◆ Controlling Temperature Precision：BC:Temperature Fluctuation ＜ ±1.0℃；Temperature Deviation ＜ ±2.0℃；Temperature Uniformity ≤ 2.0℃ ; RC:Temperature Fluctuation ＜ ±0. 5℃；Temperature Deviation ＜ ±1.0℃ ; Temperature Uniformity ≤ 1.0℃ ; FC:Temperature Fluctuation ＜ ±0. 5℃；Temperature Deviation ＜ ±2.0℃ ; Temperature Uniformity ≤ 2.0℃ ; ◆ Environment Temperature：+5 ~ 30℃ ; Power：AC220V±10% 50HZ; ◆ Optional: Temperature- humidity deviation, sudden power failure , control by Remote SMS alarm. Name Model Temperature Range ( ℃ ) Capacity (L) Interior Dimensions(mm) W×D×H External Dimensions(mm) W×D×H Power ( kW ) Shelf (Standard) Remarks Storage Chamber (2~14℃ ) Labonce-250BC 2~14 250 600×500×830 780×880×1650 0.6 3 With observation window Labonce-400BC 2~14 400 600×700×950 780×1060×1750 0.8 3 Labonce-500BC 2~14 500 680×680×1080 860×1050×1850 1.0 4 Labonce-800BC 2~14 800 1200×490×1360 1390×890×1960 1.2 4 Labonce-1000BC 2~14 1000 1400×510×1400 1590×890×1980 1.5 4 Low-temperatre Chamber(5℃ ) Labonce-250RC 5 250 600×500×830 780×880×1650 0.6 3 With observation window，Double compressors, one operation and one protection. Labonce-500RC 5 500 680×680×1080 860×1050×1850 1.2 4 Labonce-720RC 5 750 1200×490×1360 1390×890×1960 1.5 4 Labonce-2000RC 5 2000 1500×970×1400 1710×1380×1990 2.0 4 Low-temperatre Chamber(-20℃ ) Labonce-150FC -20 150 600×405×620 850×890×1520 1.0 3 Solid door Labonce-250FC -20 250 600×500×830 850×990×1690 1.5 3
