Stability chamber

Stability Test Chamber(Dual Independent)





Humidity:20~95%RH
Internal Volume: 300L-600L
Temperature Control Range: 15-65°C
Temperature Fluctuation: ±0.5°C
Temperature Deviation: ±1.0°C (without light)
Humidity Control Range: 20-95%RH
Humidity Fluctuation: ±2.0%RH
Humidity Deviation: ±3.0%RH
Power Supply: AC 220V±10%, 50Hz

Product introduction

Labonce-GS Series Dual-Chamber Drug Stability Test Chamber the equipment features two independently controlled chambers allowing different temperature and humidity settings for each chamber, with two separate recording systems. It uses high-quality imported components to ensure long-term continuous operation with stable and reliable performance.


Features of Dual-Chamber Drug Stability Test Chamber

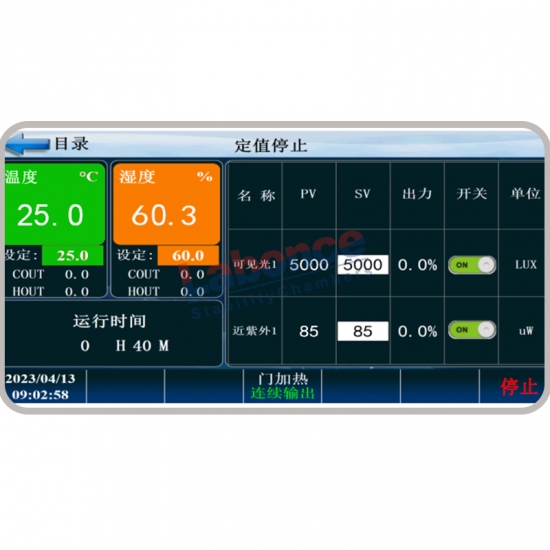

1. Temperature & Humidity Controller: Programmable color touch screen controller with variable frequency output, program control, and three-level access control
2. Humidity Sensors: Two sets of imported high-precision capacitive humidity sensors for direct detection,  maintenance-free
3. Refrigeration Compressors: Two sets of imported variable frequency hermetically sealed compressors with long lifespan and low noise
4. Data Printing: Two printing systems that can print the equipment model and serial number, as well as temperature/humidity values and curves simultaneously
5. Data Storage: Two storage systems capable of storing temperature/humidity data for over 5 years
6. On-site Alarm: Audible alarm for temperature/humidity deviations and independent over temperature alarm
7. Remote Alarm: Remote SMS alarm (including power failure alarm), multiple devices can share one SIM card
8. Chamber Material: Interior made of mirror-finish stainless steel 304, exterior made of high-quality powder-coated steel plate
9. Dual Protection: Dual dry-burn prevention system and independent over-temperature protection system with automatic power cutoff
10. Safety Devices: Compressor overheat protection, compressor overpressure protection, compressor  overload protection, and fan overheat protection


Specification of Dual-Chamber Drug Stability Test Chamber


Model

Temperature Range

( ℃ )

Humidity Range(RH)

Capacity

(L)

Interior Dimensions

W×D×H(mm)

External Dimensions

W×D×H(mm)

Power

(kW)

Shelf

(Standard)

Chamber Structure

Remarks

Labonce-320CGS-FC

15~65

20~95%

150

680×500×460

860×840×1880

2.5

2/5

UP A



Temp deviation:< ±1.0℃

2%RH

Humidity deviation:< ±3%RH A /B (Temperature + Humidity)

150

680×500×460

2/5

Down B

Labonce-520CGS-FC

15~65

20~95%

250

600×500×830

1610×870×1650

3.0

3/7

Left A

250

600×500×830

3/7

Right B

Labonce-620CGS-FC

15~65

20~95%

300

600×500×1000

1610×870×1820

3.2

3/9

Left A

300

600×500×1000

3/9

Right B



Remarks 2

1. CGS-FC Series: Chamber A features three functions: temperature, visible light, and near-ultraviolet. Illuminance measurement is standard with both light sensors, and their values are automatically printed and stored.
2. Visible light: Range: 100–6000 Lux; illuminance deviation: 4500 ± 500 Lux; total illuminance: ≥1.2×10⁶ Lux·hr. Near-ultraviolet: Range: 0.84–1.0 W/m²; total illuminance: ≥200 W·hr/m². When lighting is off, temperature and humidity specifications are the same as GS-FC.
3. Temperature: Fluctuation: <±0.5°C; deviation: <±1.0°C (lighting off). Humidity: Fluctuation: <±2% RH; deviation: <±3% RH (lighting off).
