Labonce Walk-In Stability Chamber
Product categories
Latest product
Comprehensive Stability Chamber
Comprehensive Stability Chamber
Comprehensive Stability Chamber

Stability Test Chamber (Triple Independent)

Humidity:20~95%RH Capacity:400~900L
  • Item NO.:

    430-930CGS-FC
  • Product Origin:

    CHINA
Product introduction

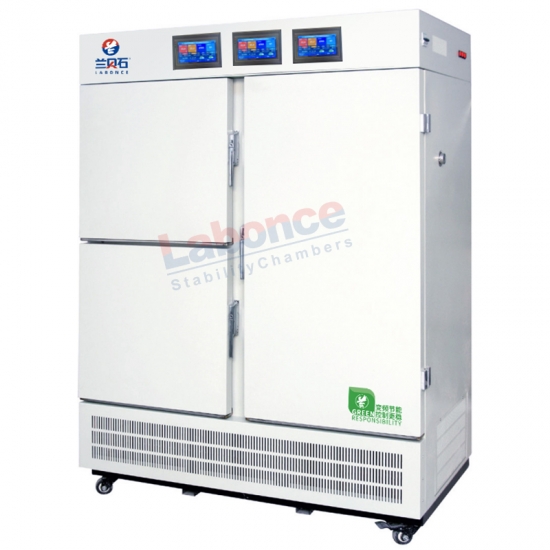

Labonce-GS/CGS Series Triple-chamber Pharmaceutical Stability Test Chamber

The system features three independently controlled chambers with innovative structural design and premium imported components, ensuring long-term continuous operation with stable and reliable performance.


Chamber capacity: 430L-930L

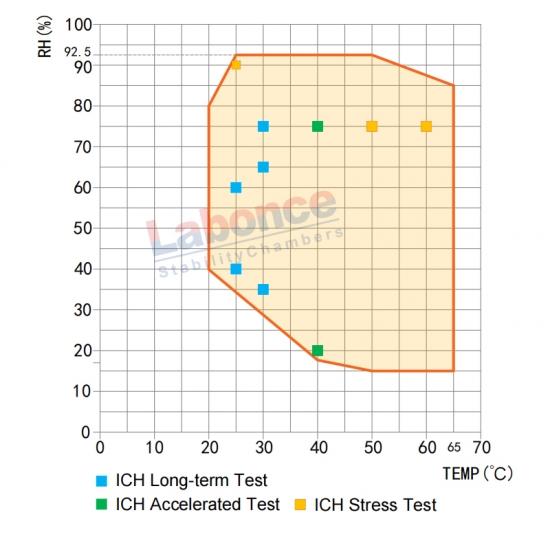

Temperature control: Range 15-65°C, Stability ±0.5°C, Uniformity ±1.0°C (without illumination)
Humidity control: Range 20-95%RH, Stability ±2.0%RH, Uniformity ±3.0%RH (without illumination)
Visible light: 100-6,000 Lux (minimum total illumination: 1.2×10⁶ Lux·hr)
Near-UV: 0.84-1 W/m² (minimum total energy: 200 W·hr/m²)
UV wavelength: 320-400 nm
Integrated touchscreen control (temperature/humidity/visible light/UV)
Simultaneous parameter printing (temperature/humidity/light/UV)
Large color touchscreen with programmable settings and three-level access control
Imported capacitive humidity sensors (maintenance-free)
Three imported inverter compressors (long lifespan, low noise)
Data storage: 5+ years with real-time curve recording
Alarm system: Audible/visual alarms, remote SMS alarm (including power failure)
Construction: 304 stainless steel interior (mirror finish), powder-coated steel exterior
Safety: Dual protection systems, comprehensive compressor protections
Power: AC 220V±10%, 50Hz
Operating conditions: Ambient +5-35°C (Recommended ≤30°C, Maximum ≤26°C)

 Special Note: Online consultation below the PDF and WORD iconyou can download this page of the color        page related materials.


Model

Temperature

Range( ℃ )

Humidity Range

(RH)

Capacity

(L)

Interior Dimensions

W×D×H(mm)

External Dimensions

W×D×H(mm)

Power

(kW)

Shelf

(Standard)

Chamber Structure

Labonce-430GS-FC

1565

20 95%

100

480×420×500

1370×780×1930

3.6

1/4

A (Temperature + Humidity + Visible Light + Near Ultraviolet) B (Temperature + Humidity)

100

480×420×500

2/4

230

480×420×1100

4/8

Labonce-930GS-FC

1565

20 95%

220

600×700×520

1570×1060×1960

4.0

1/6

220

600×700×520

2/6

480

600×700×1140

4/8

Labonce-430CGS-FC

1565

N/A

100

480×420×500

1370×780×1930

        3.6

1/4

A (Temperature + Visible Light + Near Ultraviolet; when lighting is on: temperature deviation on the same level is ±2.0°C) B/C (Temperature + Humidity)

20 95%

100

480×420×500

2/4

20 95%

230

480×420×1100

4/8

Labonce-930CGS-FC

1565

N/A

220

600×700×520

1570×1060×1960

4.0

1/6

20 95%

220

600×700×520

2/6

20 95%

480

600×700×1140

4/8

Remarks 2

Labonce CGS-FC Series' Chamber A integrates temperature, visible light (100-6000Lux, ≥1.2×10⁶ Lux·hr) and near-UV (0.84-1.0W/m², ≥200W·hr/m², 320-400nm) controls with automatic monitoring/printing of both light parameters, while maintaining GS-FC's temperature/humidity performance in non-illumination mod.
