Stability Chamber 520LGS

Humidity：10~90%RH

Capacity：520L

Item NO.:
520LGS
Product Origin:
CHINA

Online consulting

Product introduction

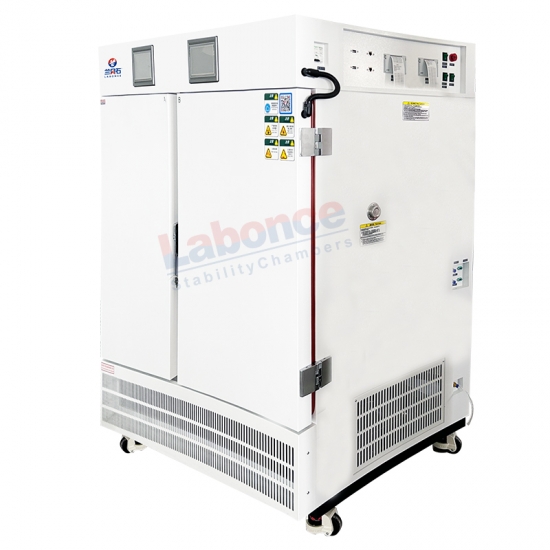

Labonce-LGS Series Stability Test Chamber for Pharmaceutical Packaging Materials

Designed with advanced imported technology, this dual-chamber system features independent control:
Chamber A: Controls temperature, humidity, visible light, and near-UV radiation, with real-time recording of illuminance and UV irradiance. Chamber B: Dedicated to pharmaceutical packaging testing, exclusively controls temperature & humidity, capable of extreme conditions (60°C/10%RH).

❶ Temperature Range: 15–65°C | Fluctuation: ±0.5°C | Deviation: ±1.0°C
❷ Humidity Range: 10–90%RH | Fluctuation: ±2.0%RH | Deviation: ±3.0%RH
❸ Visible Light: 100–8000 LUX | Total Illuminance: ≥1.2×10⁶ Lux·hr
❹ Near-UV Range: 0.84–5 W/m² | UV Energy: ≥200 W·hr/m²
❺ Unified Control: Temperature, humidity, visible light, and UV parameters integrated into a single touchscreen controller.
❻ Data Printing: Simultaneous printout of temperature, humidity, visible light, and UV values.
❼ Controller: Large color touchscreen with programmable settings and three-tier access control.
❽ Humidity Sensor: Imported high-precision capacitive sensor (maintenance-free, direct detection).
❾ Compressor: Imported hermetic compressor (long lifespan, low noise).
❿ Advanced Printing: Prints device model/ID, real-time temperature/humidity values, and curves.
⓫ Data Storage: Stores records for over 3 years.
⓬ On-Site Alarm: Audible/visual alerts for deviations; independent over-temperature alarm.
⓭ Remote Alarm: SMS alerts (including power failure); multiple devices share one SIM card.
⓮ Construction: Interior: Mirror-finish 304 stainless steel. Exterior: Powder-coated steel plate.
⓯ Dual-Door Design:Inner tempered glass door for observation. Outer solid door blocks external light.
⓰ Dual Protection: Anti-dry burn system. Independent over-temperature protection (auto power cutoff).
⓱ Safety Features: Compressor overheat/overpressure/overload protection + fan overheat protection.
⓲ Power Supply: AC 220V±10%, 50Hz.
⓳ Operating Environment: +5–35°C (recommended ≤30°C; extreme conditions ≤26°C).
⓴ Note: Click the PDF and WORD icons below to download brochures. Product images are for reference; actual specifications may vary.

Model	Temperature Range（℃）	Humidity Range (RH)	Capacity (L)	Interior Dimensions W×D×H(mm)	External Dimensions W×D×H(mm)	Power (kw)	Shelf (Standard)	Remarks
Labonce-520LGS	15～65	10～90%	250	600×500×830	1610×870×1650	3.0	3/7	Chamber A (temperature + humidity)
Labonce-520LGS	15～65	10～90%	250	600×500×830	1610×870×1650	3.0	3/7	Chamber B (temperature+ humidity)
Remarks	The LCGS series is a climate chamber with temperature, humidity, visible light (100-8000 Lux, ≥1.2×10⁶ Lux·hr total), and UVA (0.84-5 W/m², ≥200 W·hr/m² total) control. It automatically records and prints light data, maintaining LGS-series specs when dark. Ideal for material aging tests.
