Stability chamber
Stability chamber
Stability chamber

Stability Test Chamber(UVA)



Humidity: 20~95%RH
Internal Volume: 150L–500L
Power Supply: AC 220V±10%, 50Hz
Temperature Control: Range: 15–65°C
Fluctuation: ±0.5°C
Deviation: ±1.0°C (without light)

Product introduction

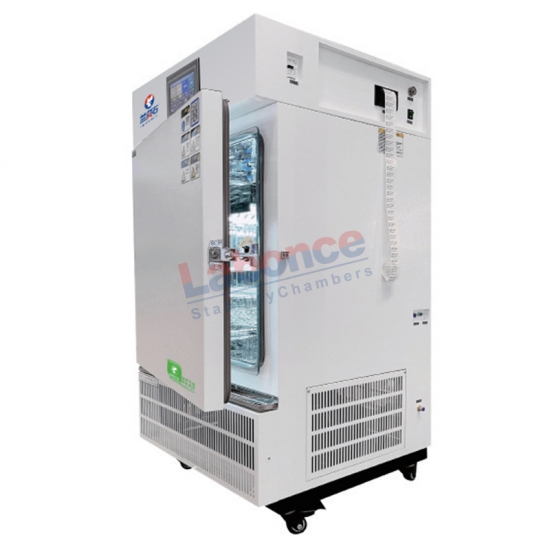

Labonce-CGS-FC Series Integrated Drug Stability Test Chamber (Combined Temperature + Humidity + Visible Light + Near-UV Control) Featuring an all-new structural design and high-quality imported components, this system ensures long-term stable operation with reliable performance.


Features of Stability Test Chamber

1. Humidity Control: Range: 20–95% RH  Fluctuation: ±2.0% RH Deviation: ±3.0% RH (without light)

2. Visible Light Range: Adjustable: 100–8000 LUX Standard: 4500±500 LUX Total illuminance: ≥1.2×10⁶ Lux·hr
3. Near-UV Range: Adjustable: 0.84–5 W/m² Total energy: ≥200 W·hr/m²
4. UV Wavelength: 320–400 nm

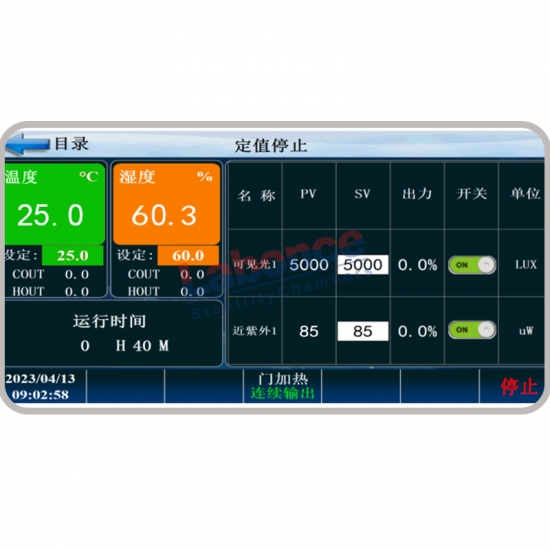

5. Control System: Touchscreen controller (centralized control for temperature, humidity, visible light, near-UV).
6. Data Printing: Prints real-time values for all four parameters (temperature, humidity, visible light, near-UV).
7. Temperature & Humidity Controller: 7-inch+ color touchscreen, programmable, with 3-level access control and audit trail.
8. Humidity Sensor: Imported capacitive sensor, direct detection, maintenance-free.
9. Refrigeration Compressor: Inverter-driven fully sealed compressor (imported), long lifespan, low noise, 50%+ energy savings.
10.  Data System: Stores data for ≥5 years; prints model number, temperature, humidity, and illuminance values.
11. Alarm System: On-site alarms (buzzer for deviations in temp/humidity/light). Independent over temperature alarm. Remote SMS alerts (including power failure alerts).
12. Chamber Material: Inner wall: Mirror-finish stainless steel (304). Outer shell: High-quality steel plate with powder coating.
13. Dual Protection: Dual dry-burn prevention system. Independent over-temperature protection (auto power  cutoff).
14. Safety Features: Compressor overheat/over pressure/overload protection. Fan overheat protection.



Specification of Stability Test Chamber

Model
Labonce-150CGS
Labonce-250CGS
Labonce-400CGS
Labonce-500CGS
Temperature Range( ℃ )
15~65
Humidity Range (RH)
20~95%
Capacity (L)

150

250

400

500

Interior Dimensions

W×D×H(mm)

600×405×620

600x500x830

600x700x950

680×680×1080

External Dimensions

W×D×H(mm)

780×830×1480

780x880x1650

780x1060x1750

860×1050×1850

Power (kw)

1.2

1.5

2.0

2.2

Shelf (Standard)

3

3

3

4

Remark

1) It has four functions: temperature, humidity, visible light and near ultraviolet. The illuminance measurement is equipped with visible light and near ultraviolet sensors, which realizes automatic illuminance control, and automatic printing and storage of visible light and near ultraviolet values.

2)Visible light range: 100 ~ 8000Lux, illuminance deviation: 4500 ± 500Lux, the total illuminance of the illumination test shall not be less than 1.2×106 Lux·hr; near ultraviolet range: 0.84 ~ 1.0 w/m2 , the total illuminance of the near ultraviolet shall not be less than 200w·hr/m2.
