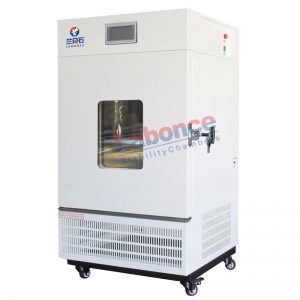

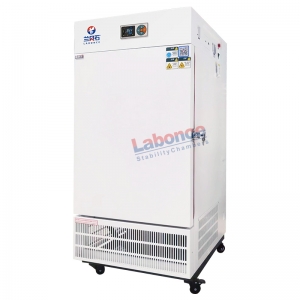

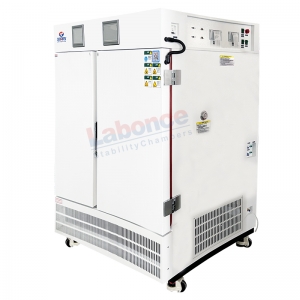

Low Temperature Storage Chamber 1000BC

TEMP: 2-14℃

Capacity：800~1000L

Item NO.:
800-1000BC

Online consulting

Product introduction

Labonce-BC series medicine preservation chamber is mainly used for preserving medicines, reagents, vaccines, biological products, blood products, etc. The temperature range is 2-8℃, which consists of refrigeration system, digital temperature control system, air circulation system, temperature sensor and so on. It is composed of refrigeration system, digital temperature control system, air circulation system, temperature sensor, etc. It can be operated by adjusting the temperature to the optimal refrigeration temperature according to the required settings. When the temperature inside the chamber is higher than the set temperature, the temperature will be automatically adjusted to the required temperature through the refrigeration system, and there is an alarm for temperature exceeding the standard.

(Labonce-BC series medicine preservation chamber since August 8, 2018 to update the structure design and performance configuration, specific as follows)

1. Door seal: abandon the magnetic refrigerator door seal, instead of silicone door seal plus hand, to solve the problem of air leakage.

2. Insulation: thickening, better uniformity in the box; 3. observation window: abandon the magnetic refrigerator door seal, replaced by a silicone door seal puller, to solve the problem of air leakage; 2.

3. Observation window: abandoned, in order to better uniformity (optional built-in glass door, but built-in glass door in different seasons may produce condensation)

4. Door lock: new, drug safety protection

5. Casters: new, easy to move

6. Controller: the original imported ST590

7. Remote alarm: the new addition of cell phone text message alarm, a number can be managed more than one, up to 15 units

8. Refrigeration system: the biggest update, using two compressors in parallel process, sub-main and vice compressor, in the case of the main compressor work, if the temperature inside the box exceeds 8 ℃ (indicating that the main compressor abnormalities), the system automatically opens the vice compressor refrigeration to maintain the operation of the equipment, and at the same time, send out a text message to the police.

❶ Internal volume: 800L~1000L

❷ Temperature control range: 2 ~ 14 ℃, temperature fluctuation: ± 1 ℃, temperature deviation: ± 2.0 ℃;

❸ Temperature controller: imported digital display controller, high precision, low drift;

❹ Refrigeration compressor: imported hermetic compressor, divided into primary and secondary dual machine work, long life, low noise;

❺ Data printing: can print the temperature value and curve at the same time;

❻ Data storage: can store more than 1 year temperature history data;

❼ On-site alarm: beep alarm for temperature deviation on-site;

❽ Remote alarm: remote cell phone SMS alarm (with power failure alarm), multiple devices can share a cell phone card;

❾ Chamber material: the inner liner material for mirror stainless steel 304, shell material for high-quality steel spray;

❿ Double protection: configure the main and vice compressor double insurance protection;

⓫ Safety devices: compressor overheating protection, compressor overpressure protection, compressor overload protection and fan overheating protection;

⓬ Installation power: AC 220V±10% 50Hz;

⓭ Special Note: Consult the PDF and WORD icons below to download the color pages of this page.

Name	Model	Temperature Range ( ℃ )	Capacity (L)	Interior Dimensions W×D×H(mm)	External Dimensions W×D×H(mm)	Power ( kW )	Shelf (Standard)	Remarks
Storage Chamber (2~14℃)	Labonce-250BC	2~14	250	600×500×830	780×880×1650	0.6	3	With observation window
	Labonce-400BC	2~14	400	600×700×950	780×1060×1750	0.8	3
	Labonce-500BC	2~14	500	680×680×1080	860×1050×1850	1.0	4
	Labonce-800BC	2~14	800	1200×490×1360	1390×890×1960	1.2	4
	Labonce-1000BC	2~14	1000	1400×510×1400	1590×890×1980	1.5	4
