Humidity：40~95%RH Capacity：150L~500L
Read more
Humidity：15~95%RH
Capacity：800~1000L
Item NO.:
800-1000GS-FCProduct Origin:
CHINA

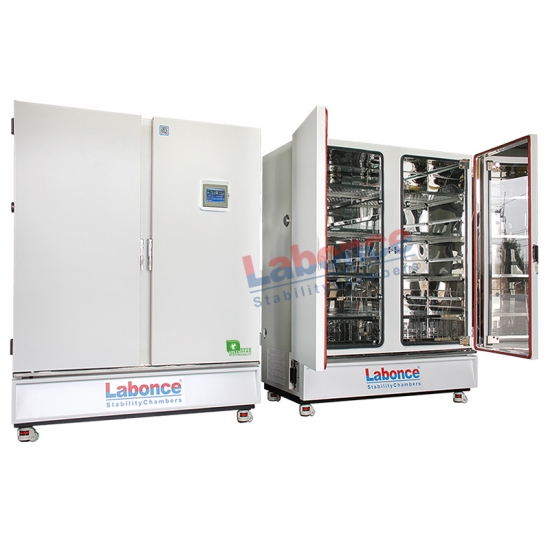

Labonce-GS-FC Stability Chamber, Adopt imported with frequency conversion technology design, Choose the original imported high quality parts, Stable and reliable performance,Suitable for GMP and CGMP certified users.
❶ Reference Standard：ICHQ1、Chinese Pharmacopoeia 2025 edition;
❷ Insulation material: Overall high-density polyurethane foam technology. Good insulation and moisture retention performance;
❸ Chamber Materials: The exterior material is coated with high quality steel plate. Inner material is made of stainless steel 304, no pollution source, easy to clean;
❹ Control system: More than 7 inches programmable color touchscreen controller, display frequency conversion output data;
❺ Three Level Authority: Adopt the user name and password to log in. Different user names have different permissions at least three levels or above;
❻ Audit tracking: The control system has historical alarm recording and operation recording functions. Supports exporting in an unchangeable file format using a USB flash drive;
❼ Refrigeration system: Imported fully enclosed compressor with frequency conversion, save more than 50% of electricity and water;
❽ Humidity control: Original imported capacitive humidity sensor, high precision, low drift, long service life;
❾ Data management: configuring needle micro printers and electronic data storage functions;
❿ Safety device: Compressor overheat and overpressure overload protection, water shortage protection. Anti dry burning protection system, independent overtemperature protection alarm system;
⓫ Alarm system：On-site audible & visual alarm;
⓬ Double Door structure：Interior door tempered glass door. Open the outer door to observe the sample. Temperature and humidity inside the container will not change in a short time. Outer door is solid can keep temperature and humidity. Can also prevent the influence of external light;
⓭ Controlling Temperature Precision：Temperature Fluctuation＜±0.5℃；Temperature Uniformity ＜±1.0℃ ;
⓮ Controlling Humidity Precision：Humidity Fluctuation ＜ ±2%RH；Humidity Uniformity ＜ ±3%RH;
⓯ Power：AC220V±10% 50Hz/60Hz;
⓰ Environment Temperature：+5 ~ 35℃ ;
⓱ Optional: Temperature- humidity deviation, sudden power failure, remote SMS alarm.
⓲ Special Note: Online consultation below the PDF and WORD icon, you can download this page of the color page related materials.
|
Model |
Temperature Range( ℃ ) |
Humidity Range(RH) |
Capacity (L) |
Interior Dimensions W×D×H(mm) |
External Dimensions W×D×H(mm) |
Power (kW) |
Shelf (Standard) |
Remarks |
|
Labonce-800GS-FC |
10~65 |
15~95% |
800 |
1200×490×1360 |
1385×895×1965 |
2.5 |
4/8 |
Customized observation window |
|
Labonce-1000GS-FC |
10~65 |
15~95% |
1000 |
1400×510×1400 |
1615×925×1975 |
3.0 |
4/8 |
Low-temperature Stability Chamber(BC/RC/FC Series)
Labonce -C Series Low -temperature Stability Chamber,Adopt the brand - new air-way structural design, select the original imported high quality parts and manufacturing process, ensure the long -term continuous operation of the equipment, stable and reliable performance, suitable for temperature sensitive medicine stability test and preservation. ◆ Reference Standard：Medical refrigerator industry standard: YY/T 0086-2020; ◆ Air-way System: The newly air-way system designed achieves uniform of temperature form different parts inside the chamber; ◆ Insulation material: Overall high-density polyurethane foam technology, with good insulation and moisture retention performance; ◆ Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304, no pollution source, easy to clean; ◆ Refrigeration system：Imported fully enclosed industrial compressor, high efficiency, low noise, long life; ◆ Control system：Original imported digital display controller, high precision, low drift; ◆ Safety device: compressor overheat and overpressure overload protection; ◆ Alarm system：On-site beeping alarm; ◆ Other configuration：Test hole、Rubber plug、Mobile casters、Door lock; ◆ Controlling Temperature Precision：BC:Temperature Fluctuation ＜ ±1.0℃；Temperature Deviation ＜ ±2.0℃；Temperature Uniformity ≤ 2.0℃ ; RC:Temperature Fluctuation ＜ ±0. 5℃；Temperature Deviation ＜ ±1.0℃ ; Temperature Uniformity ≤ 1.0℃ ; FC:Temperature Fluctuation ＜ ±0. 5℃；Temperature Deviation ＜ ±2.0℃ ; Temperature Uniformity ≤ 2.0℃ ; ◆ Environment Temperature：+5 ~ 30℃ ; Power：AC220V±10% 50HZ; ◆ Optional: Temperature- humidity deviation, sudden power failure , control by Remote SMS alarm. Name Model Temperature Range ( ℃ ) Capacity (L) Interior Dimensions(mm) W×D×H External Dimensions(mm) W×D×H Power ( kW ) Shelf (Standard) Remarks Storage Chamber (2~14℃ ) Labonce-250BC 2~14 250 600×500×830 780×880×1650 0.6 3 With observation window Labonce-400BC 2~14 400 600×700×950 780×1060×1750 0.8 3 Labonce-500BC 2~14 500 680×680×1080 860×1050×1850 1.0 4 Labonce-800BC 2~14 800 1200×490×1360 1390×890×1960 1.2 4 Labonce-1000BC 2~14 1000 1400×510×1400 1590×890×1980 1.5 4 Low-temperatre Chamber(5℃ ) Labonce-250RC 5 250 600×500×830 780×880×1650 0.6 3 With observation window，Double compressors, one operation and one protection. Labonce-500RC 5 500 680×680×1080 860×1050×1850 1.2 4 Labonce-720RC 5 750 1200×490×1360 1390×890×1960 1.5 4 Labonce-2000RC 5 2000 1500×970×1400 1710×1380×1990 2.0 4 Low-temperatre Chamber(-20℃ ) Labonce-150FC -20 150 600×405×620 850×890×1520 1.0 3 Solid door Labonce-250FC -20 250 600×500×830 850×990×1690 1.5 3
