Humidity:40~95%RH Capacity:150L~500L
Read moreItem NO.:
800GSProduct Origin:

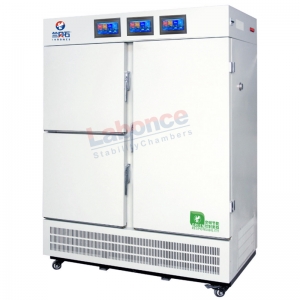

CHINALabonceqGS series largeqcapacity drug stability test chamber,with independent right and left door opening design.
It issaasmall in depth and convenient for taking samples.The singleaside door opening minimizes the overall temperat
ure and humidityachanges.It adopts highaquality craftsmanship design and selects imported highaquality components
.The performance isastableaand reliable,suitable for users certified by GMP and CGMP.
❶ |
Reference Standard:ICHQ1(A)、Chinese Pharmacopoeia 2020 edition; |
❷ |
Insulation material: Overall high-density polyurethane foam technology, with good insulation and moisture retention performance; |
❸ |
Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304, no pollution source, easy to clean; |
❹ |
Control system: Programmable color touch screen controller; |
❺ |
Three Level Authority:Adopt the user name and password to log in. Different user names have different permissions at least three levels or above; |
❻ |
Audit tracking: The control system has historical alarm recording and operation recording functions, and supports exporting in an unchangeable file format using a USB flash drive; |
❼ |
Refrigeration system: Imported fully enclosed compressor; |
❽ |
Humidity control: Original imported capacitive humidity sensor, high precision, low drift, long service life, maintenance free; |
❾ |
Data management: configuring needle micro printers and electronic data storage functions; |
❿ |
Safety device: Compressor overheat and overpressure overload protection, water shortage protection, dry burning protection system, independent overtemperature protection alarm system; |
⓫ |
Alarm system:On-site beeping alarm; |
⓬ |
Double Door structure:Interior door tempered glass door,Open the outer door to observe the samples,The temperature and humidity inside the container will not change in a short time,The outer door is solid can keep temperature and humidity,It can also prevent the influence of external light; |
⓭ |
Controlling Temperature Precision:Temperature Fluctuation < ±0. 5℃;Temperature Deviation < ±1.0℃ ; |
⓮ |
Controlling Humidity Precision:Humidity Fluctuation < ±2%RH;Humidity Deviation < ±3%RH; |
⓯ |
Power:AC220V±10% 50HZ; |
⓰ |
Environment Temperature:+5 ~ 35℃ ; |
⓱ |
Optional: Temperature- humidity deviation, sudden power failure , control by Remote SMS alarm. |
Model |
Temperature Range ( ℃ ) |
Humidity Range (RH) |
Capacity (L) |
Interior Dimensions(mm) W×D×H |
External Dimensions(mm) W×D×H |
Power (kW) |
Shelf (Standard) |
Remarks |
Labonce-800GS |
10 ~ 65 |
20 ~ 95% |
800 |
1200×490×1360 |
1390×940×1960 |
2.5 |
4/8 |
Customized 3000GS configuration observation window |
Labonce-1000GS |
10 ~ 65 |
20 ~ 95% |
1000 |
1400×510×1400 |
1590×940×1980 |
3.0 |
4/8 |
