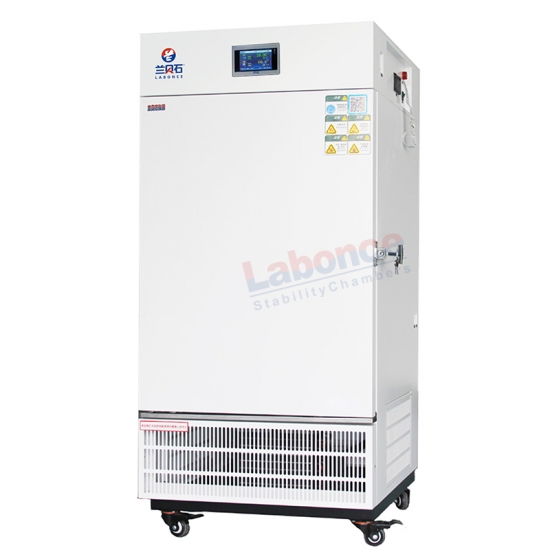

Labonce-LGS Series Stability Test Chamber for Pharmaceutical Packaging Materials
Designed with advanced imported technology, this dual-chamber system features independent control:
Chamber A: Controls temperature, humidity, visible light, and near-UV radiation, with real-time recording of illuminance and UV irradiance. Chamber B: Dedicated to pharmaceutical packaging testing, exclusively controls temperature & humidity, capable of extreme conditions (60°C/10%RH).
❶ Temperature Range: 15–65°C | Fluctuation: ±0.5°C | Deviation: ±1.0°C
❷ Humidity Range: 10–90%RH | Fluctuation: ±2.0%RH | Deviation: ±3.0%RH
❸ Visible Light: 100–8000 LUX | Total Illuminance: ≥1.2×10⁶ Lux·hr
❹ Near-UV Range: 0.84–5 W/m² | UV Energy: ≥200 W·hr/m²
❺ Unified Control: Temperature, humidity, visible light, and UV parameters integrated into a single touchscreen controller.
❻ Data Printing: Simultaneous printout of temperature, humidity, visible light, and UV values.
❼ Controller: Large color touchscreen with programmable settings and three-tier access control.
❽ Humidity Sensor: Imported high-precision capacitive sensor (maintenance-free, direct detection).
❾ Compressor: Imported hermetic compressor (long lifespan, low noise).
❿ Advanced Printing: Prints device model/ID, real-time temperature/humidity values, and curves.
⓫ Data Storage: Stores records for over 3 years.
⓬ On-Site Alarm: Audible/visual alerts for deviations; independent over-temperature alarm.
⓭ Remote Alarm: SMS alerts (including power failure); multiple devices share one SIM card.
⓮ Construction: Interior: Mirror-finish 304 stainless steel. Exterior: Powder-coated steel plate.
⓯ Dual-Door Design: Inner tempered glass door for observation. Outer solid door blocks external light.
⓰ Dual Protection: Anti-dry burn system. Independent over-temperature protection (auto power cutoff).
⓱ Safety Features: Compressor overheat/overpressure/overload protection + fan overheat protection.
⓲ Power Supply: AC 220V±10%, 50Hz.
⓳ Operating Environment: +5–35°C (recommended ≤30°C; extreme conditions ≤26°C).
⓴ Note: Click the PDF and WORD icons below to download brochures. Product images are for reference; actual specifications may vary.
|
Model |
Temperature Range（℃） |
Humidity Range (RH) |
Capacity (L) |
Interior Dimensions W×D×H(mm) |
External Dimensions W×D×H(mm) |
Power (kw) |
Shelf (Standard) |
Remarks |
|
Labonce-250LGS |
15~65 |
10~90% |
250 |
600×500×830 |
780×880×1650 |
1.8 |
3/7 |
Single(Temperature +Humidity) |
|
Labonce-500LGS |
15~65 |
10~90% |
500 |
680×680×1080 |
860×1050×1850 |
2.2 |
4/11 |
|
|
Remarks |
The LCGS series is a climate chamber with temperature, humidity, visible light (100-8000 Lux, ≥1.2×10⁶ Lux·hr total), and UVA (0.84-5 W/m², ≥200 W·hr/m² total) control. It automatically records and prints light data, maintaining LGS-series specs when dark. Ideal for material aging tests. |
|||||||
