Humidity：40~95%RH Capacity：150L~500L
Read more
Humidity：20~95%RH
Capacity：520L
Item NO.:
520LCGSProduct Origin:
CHINA

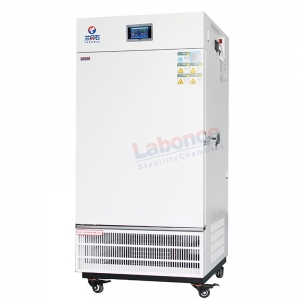

Labonce-LCGS Series Stability Test Chamber for Pharmaceutical Packaging Materials
Designed with advanced imported technology, this dual-chamber system features independent control:
Chamber A: Controls temperature, humidity, visible light, and near-UV radiation, with real-time recording of illuminance and UV irradiance.Chamber B: Dedicated to pharmaceutical packaging testing, exclusively controls temperature & humidity, capable of extreme conditions (60°C/10%RH).
❶ Temperature Range: 15–65°C | Fluctuation: ±0.5°C | Deviation: ±1.0°C
❷ Humidity Range: 10–90%RH | Fluctuation: ±2.0%RH | Deviation: ±3.0%RH
❸ Visible Light: 100–8000 LUX | Total Illuminance: ≥1.2×10⁶ Lux·hr
❹ Near-UV Range: 0.84–5 W/m² | UV Energy: ≥200 W·hr/m²
❺ Unified Control: Temperature, humidity, visible light, and UV parameters integrated into a single touchscreen controller.
❻ Data Printing: Simultaneous printout of temperature, humidity, visible light, and UV values.
❼ Controller: Large color touchscreen with programmable settings and three-tier access control.
❽ Humidity Sensor: Imported high-precision capacitive sensor (maintenance-free, direct detection).
❾ Compressor: Imported hermetic compressor (long lifespan, low noise).
❿ Advanced Printing: Prints device model/ID, real-time temperature/humidity values, and curves.
⓫ Data Storage: Stores records for over 3 years.
⓬ On-Site Alarm: Audible/visual alerts for deviations; independent over-temperature alarm.
⓭ Remote Alarm: SMS alerts (including power failure); multiple devices share one SIM card.
⓮ Construction: Interior: Mirror-finish 304 stainless steel. Exterior: Powder-coated steel plate.
⓯ Dual-Door Design: Inner tempered glass door for observation. Outer solid door blocks external light.
⓰ Dual Protection: Anti-dry burn system. Independent over-temperature protection (auto power cutoff).
⓱ Safety Features: Compressor overheat/overpressure/overload protection + fan overheat protection.
⓲ Power Supply: AC 220V±10%, 50Hz.
⓳ Operating Environment: +5–35°C (recommended ≤30°C; extreme conditions ≤26°C).
⓴ Note: Click the PDF and WORD icons below to download brochures. Product images are for reference; actual specifications may vary.
|
Model |
Temperature Range ( ℃ ) |
Humidity Range (RH) |
Capacity (L) |
Interior Dimensions W×D×H(mm) |
External Dimensions W×D×H(mm) |
Power (kw) |
Shelf (Standard) |
Remarks 2 |
|
Labonce-520LCGS |
15～65 |
10～90% |
250 |
600×500×830 |
1610×870×1650 |
3.5 |
3/7 |
chamber A (temperature + humidity + visible light + near UV) |
|
10～90% |
250 |
600×500×830 |
3.5 |
3/7 |
chamber B (temperature + humidity) |
|||
|
Remarks 1 |
LCGS series: chamber A with temperature, humidity, visible light, near-ultraviolet four functions, illuminance measurement standard visible light and near-ultraviolet sensors, visible values and near-ultraviolet values are automatically printed and stored; Visible range: 100 ~ 8000Lux, 4500 ± 500Lux, light test of the total illuminance is not less than 1.2 × 106 Lux - hr; near-ultraviolet range: 0.84 ~ 5w/m2, near-ultraviolet total energy is not less than 200w - hr/m2; no light, temperature and humidity indicators with LGS. Range: 0.84～5w/m2, the total energy of near-ultraviolet is not less than 200w- hr/m2; when there is no light, the temperature and humidity index is the same as LGS. |
|||||||
