Humidity: 15~95%RH
Capacity: 150~500L
Temperature Fluctuation: <±0.5℃
Temperature Uniformity: <±1.0℃
Humidity Fluctuation: < ±2%RH
Humidity Uniformity: < ±3%RH
Power: AC220V±10% 50Hz/60Hz
Environment Temperature: +5 ~ 35℃

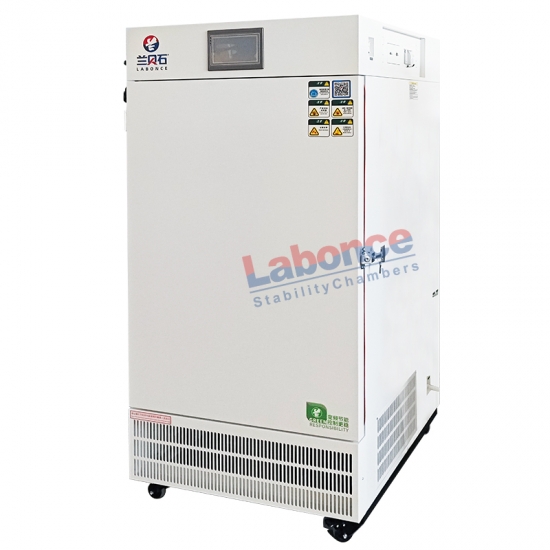

Labonce-GS-FC Stability Chamber, Adopt imported with frequency conversion technology design, Choose the original imported high quality parts, Stable and reliable performance,Suitable for GMP and CGMP certified users.
1. Insulation material: Overall high-density polyurethane foam technology. Good insulation and moisture retention performance;
2. Chamber Materials: The exterior material is coated with high quality steel plate. Inner material is made of stainless steel 304, no pollution source, easy to clean;
3. Control system: More than 7 inches programmable color touchscreen controller, display frequency conversion output data;
4. Three Level Authority: Adopt the user name and password to log in. Different user names have different permissions at least three levels or above;
5. Audit tracking: The control system has historical alarm recording and operation recording functions. Supports exporting in an unchangeable file format using a USB flash drive;
6. Refrigeration system: Imported fully enclosed compressor with frequency conversion, save more than 50% of electricity and water;
7. Humidity control: Original imported capacitive humidity sensor, high precision, low drift, long service life;
8. Safety device: Compressor overheat and overpressure overload protection, water shortage protection. Anti dry burning protection system, independent overtemperature protection alarm system;
9. Alarm system:On-site audible & visual alarm;
10. Optional: Temperature- humidity deviation, sudden power failure, remote SMS alarm.
|
Model |
Labonce-150GS-FC |
Labonce-500GS-FC |
|
Temperature Range(°C) |
10~65 |
10~65 |
|
Temperature Fluctuation |
±0.5°C |
±0.5°C |
|
Temperature Uniformity |
±1°C |
±1°C |
|
Humidity Range(RH) |
15~ 95% |
15~ 95% |
|
Humidity Uniformity |
±3.0%RH |
±3.0%RH |
|
Capacity(L) |
150 |
500 |
|
Interior Dimensions(mm)W×D×H |
600×405×625 |
680×680×1080 |
|
External Dimensions(mm)W×D×H |
780×830×1480 |
860×1050×1850 |
|
Installation power(kW) |
1.5 |
2.2 |
|
Shelf(Standard) |
3/6 |
4/11 |
|
Power |
220V 50Hz/60Hz |
|
|
Environment Temperature |
5~35°C |
|
|
Reference Standard |
Complies with ICHQ1 |
|
|
Invention Patent |
ZL 202022621384.2 |
|
|
3Q Validation |
IQ/OQ/PQ CCA/DQ/FAT |
|
|
Remarks |
Single-door |
|
