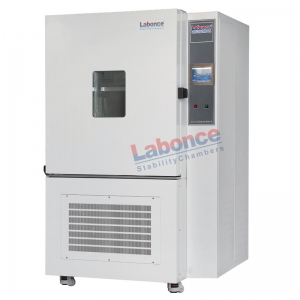

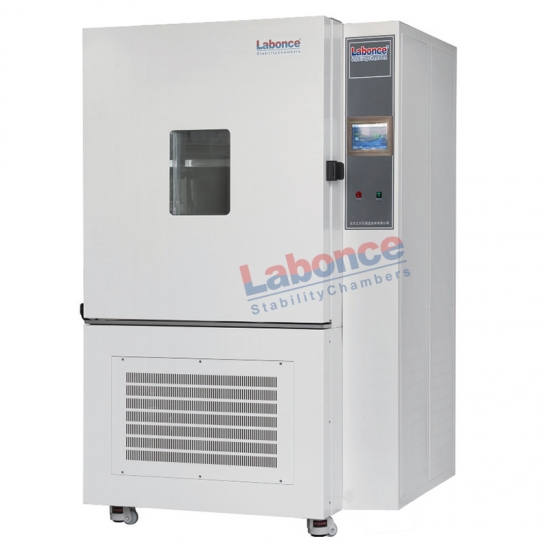

High-Low Temperature Chamber 1000GDJ

TEMP：-20～150℃；-40～150℃；-60～150℃

Item NO.:
100GDJ~1000GDJ
Product Origin:
CHINA

Online consulting

Product introduction

Labonce-GDJ series high and low temperature test box is applied to the adaptability test of electrotechnics, electronic products, their original devices, and other materials when they are stored, transported and used in high and low temperature environment. Under low temperature, high temperature and other conditions, the physical and other related characteristics of the product are simulated and tested. After the test, the performance of the product can be judged by the test and whether it still meets the predetermined requirements for product design, improvement, identification and delivery inspection.

❶ Volume: 100L~1000L;
❷ Temperature control range: GDJA: -20 ~ 150 ℃; GDJB: -40 ~ 150 ℃; GDJC: -60 ~ 150 ℃
❸ Temperature fluctuation: < ± 0.5 ℃; Rising temperature rate: 3 ℃ / min; cooling rate: 1 ℃ / min. Temperature deviation: < ±2.0℃;
❹ Temperature controller: original imported digital display controller;
❺ Refrigeration compressor: original imported hermetic compressor, long life, low noise;
❻ Data storage: U disk storage, can store more than one year temperature and humidity values;
❼ Chamber material: liner material for mirror stainless steel 304, shell material for high-quality steel spray;
❽ Safety devices: compressor overheating protection and overpressure overload protection; fan overheating protection;
❾ On-site alarm: temperature upper and lower limit deviation alarm; independent over-temperature protection alarm system;
❿ Power supply: AC 220V±10% 50Hz (AC 380V±10% 50Hz);
⓫ Special Note: Online consultation below the PDF and WORD icons, you can download the color page of this page related information.

Name	Model	Temp	Capacity (L)	Interior Dimens W×D×H(mm)	External Dimens W×D×H(mm)	Shelf	Remarks
High-low temperature chamber	Labonce-100GDJ	GDJA:-20～150℃ GDJB:-40～150℃ GDJC:-60～150℃	100	450×450×500	730×1040×1570	2	Power specs refer to the tech specs of the corresponding model
	Labonce-250GDJ		250	650×550×700	930×1180×1850	2
	Labonce-500GDJ		500	800×700×900	1250×1150×2080	2
	Labonce-1000GDJ		1000	1000×1000×1000	1500×1500×2200	2
