Humidity：40~95%RH Capacity：150L~500L
Read more
TEMP：-20～150℃；-40～150℃；-60～150℃
Item NO.:
100JS~1000JSProduct Origin:
CHINA

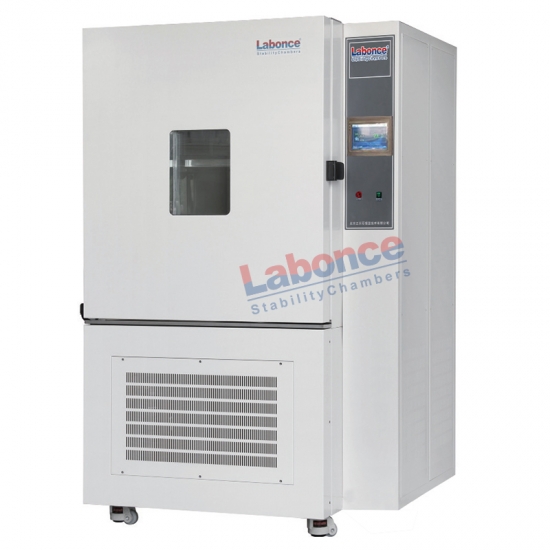

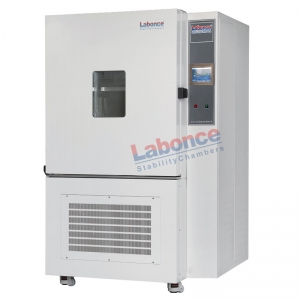

Labonce-JS series of high and low temperature alternating humidity and heat test chamber, applied to electrical and electronic products, as well as its original devices, and other materials in the high temperature, low temperature, hot and humid environment of storage, transportation, use of adaptability test. In the low-temperature, high-temperature, high-temperature conditions, the product's physical and other related characteristics of the environment simulation test, after the test, through the test, to determine the performance of the product, whether or not it is still able to meet the predetermined requirements, in order to provide product design, improvement, identification and factory inspection with.
❶ Internal volume: 100L~1000L;
❷ Temperature control range: JSA:-20~150℃; JSB:-40~150℃; JSC:-60~150℃;
❸ Temperature fluctuation: <±0.5 ℃; heating rate :3 ℃ / min; cooling rate : 1 ℃ / min.
❹ Temperature deviation: ＜±2.0℃;
❺ Humidity control range: 20~98%RH;
❻ Humidity deviation: ＜±3%RH (control humidity＞75%RH); ＜±5%RH (control humidity＜75%RH);
❼ Temperature controller: imported color touch screen controller, more than 5 inches, program control, with three levels of authority password;
❽ Refrigeration compressor: imported hermetic compressor, long life, low noise;
❾ Data storage: SD card storage, can store more than five years of electronic text data, can be computer export data;
❿ Material of Chamber: liner material for mirror stainless steel 304, shell material for high-quality steel spray;
⓫ Safety devices: compressor overheating protection and overpressure overload protection; fan overheating protection;
⓬ On-site alarm: temperature upper and lower limit deviation alarm; independent over-protection alarm system;
⓭ Power supply: AC 220V±10% 50Hz (AC 380V±10% 50Hz);
⓮ Special Note: Online consultation below the PDF and WORD icons, you can download this page of the color page related information.
|
Name |
Model |
Temp（Customized） |
Humidity |
Capacity(L) |
Inner size W×D×H(mm) |
Outside size W×D×H(mm) |
Shelf |
|
High-low temperature and humidity chamber |
Labonce-100JS |
JSA:-20～150℃ JSB:-40～150℃ JSC:-60～150℃ |
20~98% |
100 |
450×450×500 |
800×900×1700 |
2 |
|
Labonce-250JS |
20~98% |
250 |
600×600×700 |
1100×1000×1900 |
2 |
||
|
Labonce-500JS |
20~98% |
500 |
800×700×900 |
1280×1180×2000 |
2 |
||
|
Labonce-1000JS |
20~98% |
1000 |
1000×1000×1000 |
1500×1500×2200 |
2 |

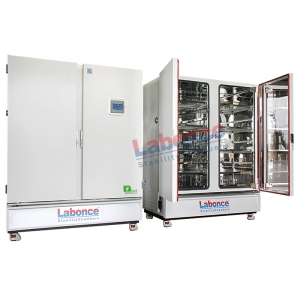

Medicine Stability Testing Chamber With Double open door(≥800L)
Humidity：20~95%RH Capacity：800L~2000L
Stability Chamber(LGS series: Special for medicine packages)
Labonce - LGS series medicine stability chamber is equipped with ultra - low humidity control function, which meets the requirements of the 2020 Pharmacopoeia and is suitable for GMP and CGMP certified users. ◆ Reference Standard：ICHQ1(A)、Chinese Pharmacopoeia 2020 edition; ◆ Ultra low humidity, special conditions for cartridge testing; ◆ Insulation material: Overall high-density polyurethane foam technology, with good insulation and moisture retention performance; ◆ Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304, no pollution source, easy to clean; ◆ Control system：Programmable color touch screen controller; ◆ Refrigeration system: Imported fully enclosed compressor, high efficiency, low noise, long service life; ◆ Data management ：Configure needle type micro printer and electronic data storage function，support to use U disk to export the data. ◆ Safety device: compressor overheat and overpressure overload protection, water shortage protection, dry burning protection system, independent overtemperature protection alarm system; ◆ Alarm system：On-site beeping alarm; ◆ Double Door Structure：Interior door tempered glass door，Open the outer door to observe the samples，The temperature and humidity inside the container will not change in a short time，The outer door is solid can keep temperature and humidity，It can also prevent the influence of external light; ◆ Other configurations：Test hole、Rubber plug、Mobile casters、Door lock; ◆ Special indicators: able to meet 60℃ /10%RH, 25℃ /20%RH special conditions (ambient temperature below 25℃ ); ◆ Controlling Temperature Precision：Temperature Fluctuation ＜ ±0. 5℃；Temperature Deviation ＜ ±1.0℃ ; ◆ Controlling Humidity Precision：Humidity Fluctuation ＜ ±3%RH；Humidity Deviation ＜ ±3%RH; ◆ Environment Temperature：+5 ~ 35℃ ; ◆ Power：AC220V±10% 50HZ. ◆ Optional: Temperature- humidity deviation, sudden power failure , control by Remote SMS alarm. Model Temperature Range ( ℃ ) Humidity Range (RH) Capacity (L) Interior Dimensions(mm) W×D×H External Dimensions(mm) W×D×H Power ( kW ) Shelf (Standard) Remarks Labonce-250LGS 15 ~ 65 10 ~ 90% 250 600×500×830 780×880×1650 1.5 3 Single(Temperature+Humidity) Labonce-500LGS 15 ~ 65 10 ~ 90% 500 680×680×1080 860×1050×1850 2.2 4 Single(Temperature+Humidity) Labonce-520LGS 15 ~ 65 10 ~ 90% 250 600×500×830 1610×870×1650 3.0 3 A(Temperature+Humidity) 250 600×500×830 3 B(Temperature+Humidity) Labonce-520LCGS 15 ~ 65 10 ~ 90% 250 600×500×830 1610×870×1650 3.5 3 A(Temperature+Humidity+Visible Light+UVA) 250 600×500×830 3 B(Temperature+Humidity) Remarks LCGS series: A chamber with temperature, humidity, visible light, UVA four functions, illuminance measurement standard with visible light and UVA sensor, the visible light value and UVA value are automatically printed and stored; visible light range: 100 ~ 8000Lux, 4500 ± 500Lux, Total illuminance of the light test is not less than 1.2×106 Lux-hr; UVA range: 0.84 ~ 5w/ ㎡ , UVA total energy of not less than 200w-hr/ ㎡ ;When there is no light, the temperature and humidity indicators are the same as LGS.
