Humidity:40~95%RH Capacity:150L~500L
Read moreItem NO.:
100~1000GWHProduct Origin:
CHINA

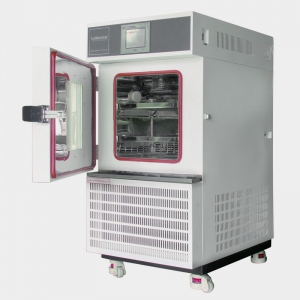

Labonce-GW series high-temperature test chamber adopts new structure design, stable and reliable performance, which is suitable for high-temperature experiment of electric and electronic products and materials.
❶ |
Reference standard: GB/T 11158-2008 Technical Conditions for High Temperature Test Chambers; |
❷ |
Air-way system: a new air-way system design, three sides of the air, good temperature uniformity in different locations within the chamber; |
❸ |
Control system: three-level permission programmable color touch screen controller; |
❹ |
Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel; |
❺ |
Data management: Configure electronic data storage function, which can export data through a USB flash drive; |
❻ |
Safety device: Equipped with an independent overtemperature protection system to protect the safety of samples and equipment; |
❼ |
Temperature control accuracy: Temperature fluctuation ≤ ± 0.5 ℃ , temperature deviation ≤ ± 2.0 ℃ (below 150℃)Temperature deviation ≤ ± 3.0 ℃ (below 300 ℃ ).
|
Name |
Model |
Temperature Range ( ℃ ) |
Capacity (L) |
Interior Dimensions(mm) W×D×H |
External Dimensions(mm) W×D×H |
Power ( kW ) |
Shelf (Standard) |
Remarks |
High Temperature Chamber (300℃ ) |
Labonce-100GWH |
RT+10 ~ 300 |
100 |
450×450×450 |
1100×700×800 |
2.5 |
2 |
Temperature deviation (℃): ± 3.0 |
Labonce-250GWH |
RT+10 ~ 300 |
250 |
600×600×700 |
1250×850×1000 |
3.0 |
2 |
||
Labonce-500GWH |
RT+10 ~ 300 |
500 |
800×700×900 |
1450×1200×1200 |
4.0 |
2 |
||
Labonce-1000GWH |
RT+10 ~ 300 |
1000 |
1000×1000×1000 |
1650×1650×1300 |
4.5 |
4 |
labonce-TPS series photo-stability chamber is equipped with visible and near-ultraviolet light tubes, can independently control the type of light source, and can real -time printing and recording of visible light and near- UV radiation. visible light and near- ultraviolet can be set directly and adjusted automatically to precisely control both light sources. ◆ Equipped with D65 light source, near ultraviolet wavelength 320-400nm; ◆ Reference Standard: ICHQ1B、Chinese Pharmacopoeia 2020 edition; ◆ Light source design: The use of reasonable light source top design, the shelves of different positions of the sample to receive the light source irradiation of good uniformity; ◆ Insulation material: Overall high-density polyurethane foam technology, with good insulation and moisture retention performance; ◆ Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304, no pollution source, easy to clean; ◆ Refrigeration system: Imported fully enclosed compressor, high efficiency, low noise, long service life; ◆ Control system: Programmable color touch screen controller, with three levels of user rights and audit trail function; ◆ Data management :Configure needle type micro printer and electronic data storage function,support to use U disk to export the data. ◆ Safety device: Compressor overheat and overpressure overload protection, independent overtemperature protection alarm system; ◆ Alarm system:On-site beeping alarm; ◆ Double Door Structure:Interior door tempered glass door,Open the outer door to observe the samples,The temperature inside the container will not change in a short time,The outer door is solid can keep temperature ,It can also prevent the influence of external light; ◆ Other configurations:Test hole、Rubber plug、Mobile casters; ◆ Illumination open:Temperature Fluctuation < ±1.0℃,Temperature deviation of the same layer: < ±2.0℃ ; ◆ Environment Temperature:+5 ~ 35℃ ; ◆ Power:AC220V±10% 50HZ; ◆ Optional: Temperature- humidity deviation, sudden power failure , control by Remote SMS alarm. Model Temperature Range ( ℃ ) Capacity (L) Interior Dimensions(mm) W×D×H External Dimensions(mm) W×D×H Power ( kW ) Remarks Labonce-150TPS-1 15 ~ 50 150 650×490×500 830×790×1250 1.2 1 layer of light, Visible Light+UVA Labonce-300TPS-2 15 ~ 50 300 550×660×770 850×1030×1570 1.5 2 layers of light, Visible Light+UVA Labonce-500TPS-2 15 ~ 50 500 660×680×1110 880×1080×1880 1.8 2 layers of light, Visible Light+UVA Labonce-500TPS-3 15 ~ 50 500 660×680×1110 880×1080×1880 2.1 3 layers of light, Visible Light+UVA Labonce-1000TPS-3 15 ~ 50 1000 1360×490×1360 1620×910×1990 2.5 3 layers of light, Visible Light+UVA Labonce-150LTPS-1 2 ~ 30 150 650×490×500 830×790×1250 1.5 1 layer of light, Visible Light+UVA Labonce-500LTPS-2 2 ~ 30 500 660×680×1110 880×1080×1880 2.1 2 layers of light, Visible Light+UVA Remarks TPS:Visible Range:100 ~ 8000Lux,Direct Setting,Illuminance deviation:4500±500Lux;UVA range:0.84 ~ 5w/m2; LTPS:Visible Range:100 ~ 5000Lux,Direct Setting,Illuminance deviation:4500±500Lux;UVA range:0.84 ~ 1w/m2; Illumination requirements:The total illumination is not less than 1.2×106 Lux •hr; UVA energy is not less than 200w •hr/ m2.
