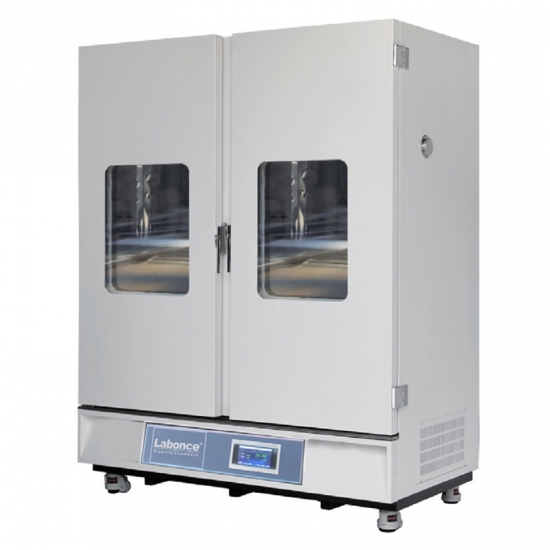

Constant Temperature & Humidity Chamber(800CH~1000CH,15~60℃)

❶

Reference standard: GB/T 10586-2006 Humid heat test chamber technical conditions;

❷

Air-way System: The newly air-way system designed achieves uniform of temperature form different parts inside the chamber;

❸

Insulation material: Overall high-density polyurethane foam technology, with good insulation and moisture retention performance;

❹

 Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304, no pollution source, easy to clean;

❺

 Refrigeration system: Imported fully enclosed compressor, high efficiency, low noise, long life;

❻

Control system: programmable color touch screen controller with data storage function, data can be exported through USB flash drive;

❼

Humidity control: Original imported capacitive humidity sensor, high precision, low drift, long service life, maintenance free;

❽

Safety device: Anti dry burning protection system, independent overtemperature protection system, on-site buzzer alarm;

❾

Other configuration: Test hole、Rubber plug、Mobile casters、Door lock、Viewing Window;

❿

Temperature control Precision: temperature fluctuation<± 0.5 ℃ ; Temperature deviation<± 2.0 ℃ ;

⓫

 Humidity control  Precision: humidity fluctuation<± 3% RH; Humidity deviation<± 3% RH;

⓬

Environmental temperature:+5~35 ℃ ;

⓭

Power: AC220V ± 10% 50Hz;

⓮

Optional: printer.
