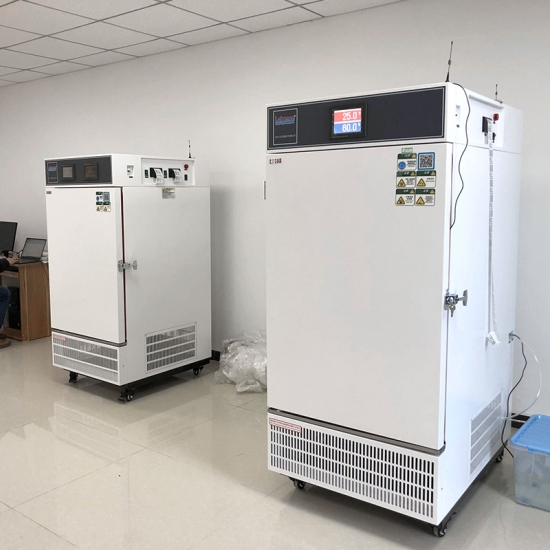

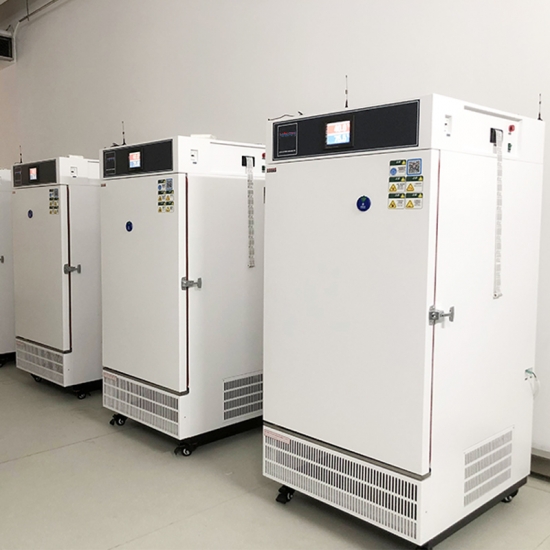

Stability Chamber(500L)

Humidity：20~95%RH

Capacity：500L

Item NO.:
500GS-FC
Product Origin:
CHINA

Online consulting

Product introduction

Labonce-GS Medicine Stability Testing Chamber, Adopt imported with frequency conversion technology design, Choose the original imported high quality parts, Stable and reliable performance,Suitable for GMP and CGMP certified users.

❶	Reference Standard：ICH2003、Chinese Pharmacopoeia 2020 edition;
❷	Insulation material: Overall high-density polyurethane foam technology, with good insulation and moisture retention performance;
❸	Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304, no pollution source, easy to clean;
❹	Control system: Programmable color touch screen controller;more than 7 inches,display frequency conversion output ratio;
❺	Three Level Authority：Adopt the user name and password to log in. Different user names have different permissions at least three levels or above;
❻	Audit tracking: The control system has historical alarm recording and operation recording functions, and supports exporting in an unchangeable file format using a USB flash drive;
❼	Refrigeration system: Imported fully enclosed compressor;Save more than 50% of electricity and water;
❽	Humidity control: Original imported capacitive humidity sensor, high precision, low drift, long service life, maintenance free;
❾	Data management: configuring needle micro printers and electronic data storage functions;
❿	Safety device: Compressor overheat and overpressure overload protection, water shortage protection, Anti dry burning protection system, independent overtemperature protection alarm system;
⓫	Alarm system：On-site beeping alarm;
⓬	Double Door structure：Interior door tempered glass door，Open the outer door to observe the sample，The temperature and humidity inside the container will not change in a short time，The outer door is solid can keep temperature and humidity，It can also prevent the influence of external light;
⓭	Controlling Temperature Precision：Temperature Fluctuation＜±0.5℃；Temperature Deviation ＜±1.0℃ ;
⓮	Controlling Humidity Precision：Humidity Fluctuation ＜ ±2%RH；Humidity Deviation ＜ ±3%RH;
⓯	Power：AC220V±10% 50HZ;
⓰	Environment Temperature：+5 ~ 35℃ ;
⓱	Optional: Temperature- humidity deviation, sudden power failure ,Remote SMS alarm.

Model	Temperature Range ( ℃ )	Humidity Range (RH)	Capacity (L)	Interior Dimensions(mm) W×D×H	External Dimensions(mm) W×D×H	Power (KW)	Shelf (Standard)	Remarks
Labonce-150GS-FC	10~65	20~95%	150	600×405×620	780×830×1480	1.2	3	Frequency conversion energy saving,Power saving > 50%,Water saving > 80%,Drastically reduce,Frequency of adding water
Labonce-250GS-FC	10~65	20~95%	250	600×500×830	780×880×1650	1.5	3
Labonce-400GS-FC	10~65	20~95%	400	600×700×950	780×1060×1750	2.0	3
Labonce-500GS-FC	10~65	20~95%	500	680×680×1080	860×1050×1850	2.2	4
