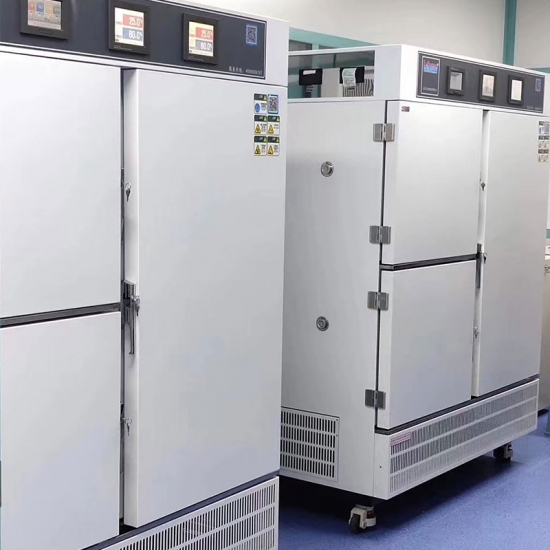

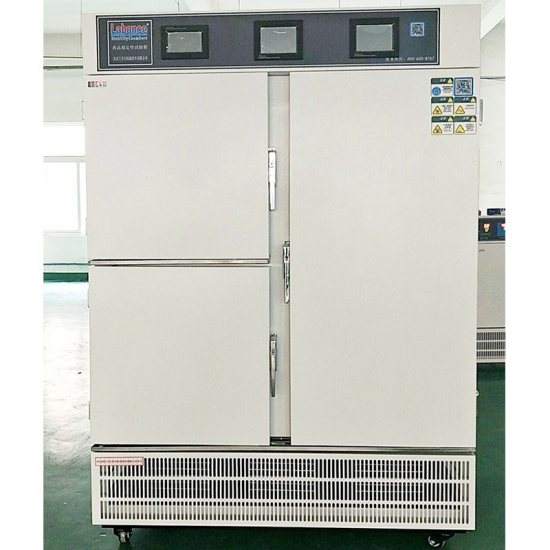

Stability Chamber (220L+220L+480L,UVA)

Humidity：20~95%RH

Capacity：930L

Item NO.:
930CGS-FC
Product Origin:
CHINA

Online consulting

Product introduction

Labonce-GS/CGS series three chamber comprehensive medicine stability tester, GS series three chamber independent control of temperature and humidity, CGS series A box is a light box, meeting the requirements of the 2020 Pharmacopoeia,suitable for GMP and CGMP certified users.

❶	Reference Standard：ICH2003、Chinese Pharmacopoeia 2020 edition;
❷	Insulation material: Overall high-density polyurethane foam technology, with good insulation and moisture retention performance;
❸	Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304, no pollution source, easy to clean;
❹	Control system: Programmable color touch screen controller;more than 7 inches,display frequency conversion output ratio;
❺	Refrigeration system: Imported fully enclosed compressor;Save more than 50% of electricity and water;
❻	Humidity control: Original imported capacitive humidity sensor, high precision, low drift, long life, maintenance free;
❼	Data management: configuring needle micro printers and electronic data storage functions;
❽	Safety device: Compressor overheat and overpressure overload protection, water shortage protection, dry burning protection system, independent overtemperature protection alarm system;
❾	Alarm system：:On-site beeping alarm;
❿	Double Door structure：Interior door tempered glass door，Open the outer door to observe the samples，The temperature and humidity inside the container will not change in a short time，The outer door is solid can keep temperature and humidity，It can also prevent the influence of external light;
⓫	Other configurations：Test hole、Rubber plug、Mobile casters、Door lock;
⓬	Controlling Temperature Precision：Temperature Fluctuation ＜ ±0. 5℃；Temperature Deviation ＜ ±1.0℃ (Without light);
⓭	Controlling Humidity Precision：Humidity Fluctuation ＜ ±2%RH；Humidity Deviation ＜ ±3%RH(Without light);
⓮	Power：AC220V±10% 50HZ;
⓯	Environment Temperature：+5 ~ 35℃ ;
⓰	Optional: Temperature- humidity deviation, sudden power failure , control by Remote SMS alarm.

Model	Temperature Range ( ℃ )	Humidity Range (RH)	Capacity (L)	Interior Dimensions(mm) W×D×H	External Dimensions(mm) W×D×H	Power (kW)	Shelf (Standard)	Chamber Structure	Remarks
Labonce-430CGS-FC	15~65	N/A	100	480×420×500	1370×780×1930	3.5	1	Up Left A	A(Temperature +VisibleLight +UVA,At the same level,the temperature deviation is ± 2.0 ℃) B/C (Temperature +Humidity)
		20~95%	100	480×420×500			2	Down Left B
		20~95%	230	480×420×1100			4	Right C
Labonce-930CGS-FC	15~65	N/A	220	600×700×520	1570×1060×1960	4.0	1	Up Left A
		20~95%	220	600×700×520			2	Down Left B
		20~95%	480	600×700×1140			4	Right C
Remarks	CGSseries: A chamber has three functions: temperature, visible light, and UVA . Illumination measurement is equipped with visible light and UVA sensors as standard, and both visible light and UVA values are automatically printed and stored; Visible light range: 100-6000Lux, illumination deviation: 4500 ± 500Lux; The total illumination of the lighting test shall not be less than 1.2 × 106 Lux · hr; UVA range: 0.84-1.0 w/ ㎡ , with a total UVA energy of no less than 200w · hr/ ㎡ ; When there is no light, the temperature and humidity indicators are the same as GS.
