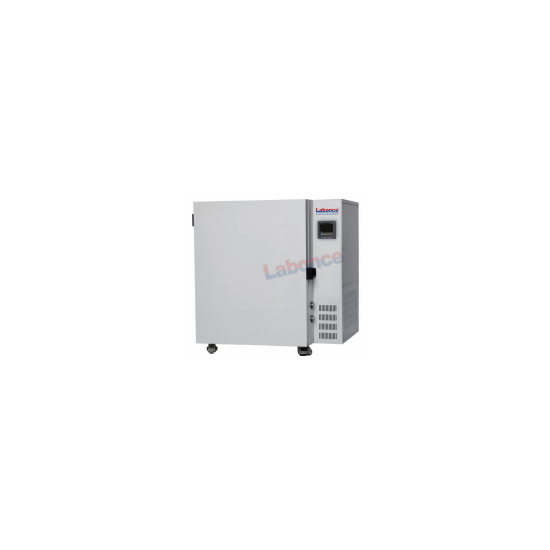

Precise Blast Drying Oven (HT/GHTH Series)

TEMP: RT+ 10～200℃/300℃

CAPACITY: 100L~1000L

Item NO.:
HT/GHTH
Product Origin:
CHINA

Online consulting

Product introduction

Labonce - HT series Precise Blast Dr ying Chamber，Adopt the brand new structural design，Stable and reliable,performance, Suitable for high temperature test of electrical and electronic products and materials.

Air-way system: a new air-way system design, three sides of the air, good temperature uniformity in different locations within the chamber;

Chamber Materials：The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel;

Control system: imported digital display meter controller;

Safety device: Equipped with an independent overtemperature protection system to protect the safety of samples and equipment;

Temperature control accuracy：Temperature Fluctuation <±0. 5℃，Temperature Deviation ＜ ±2.0℃ ( ＜ 150℃ )，Temperature Deviation ＜ ±3.0℃ ( ＜ 300℃ );

Power：AC220V±10% 50HZ(AC 380V±10% 50HZ).

Name	Model	Temperature Range ( ℃ )	Capacity (L)	Interior Dimensions(mm) W×D×H	External Dimensions(mm) W×D×H	Power ( kW )	Shelf (Standard)	Remarks
Precise Blast Drying Oven(200℃ )	Labonce-100HT	RT+10 ~ 200	100	450×450×500	1100×700×800	2.0	2	Temperature Deviation(℃): ±2.0(150 ℃)
	Labonce-250HT	RT+10 ~ 200	250	600×600×700	1250×850×1000	2.5	2
	Labonce-500HT	RT+10 ~ 200	500	800×700×900	1450×1200×1200	3.5	2
	Labonce-1000HT	RT+10 ~ 200	1000	1000×1000×1000	1650×1650×1300	4.0	4
Precise Blast Drying Oven300℃ )	Labonce-100GHTH	RT+10 ~ 300	100	450×450×500	1100×700×800	2.5	2	Temperature Deviation(℃): ±3.0(300 ℃)
	Labonce-250GHTH	RT+10 ~ 300	250	600×600×700	1250×850×1000	3.0	2
	Labonce-500GHTH	RT+10 ~ 300	500	800×700×900	1450×1200×1200	4.0	2
	Labonce-1000GHTH	RT+10 ~ 300	1000	1000×1000×1000	650×1650×1300	4.5	4
