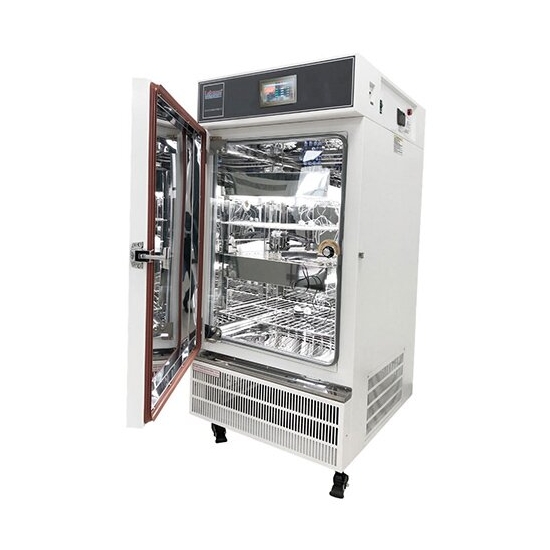

Photo Stability Chamber(300TPS-2)

TEMP: 15-50°C

Capacity：300L

Item NO.:
300TPS-2
Product Origin:
CHINA

Online consulting

Product introduction

labonce-TPS series photo-stability chamber is equipped with visible and near-ultraviolet light tubes, can independently control the type of light source, and can real-time printing and recording of visible light and near-UV radiation. visible light and near ultraviolet can be set directly and adjusted automatically to precisely control both light sources.

❶	Equipped with D65 light source, near ultraviolet wavelength 320-400nm;The light source of each layer is controlled independently;With three levels of user authority, audit trail;
❷	Reference Standard: ICHQ1B、Chinese Pharmacopoeia 2020 edition;
❸	Light source design: The use of reasonable light source top design, the shelves of different positions of the sample to receive the light source irradiation of good uniformity;
❹	Insulation material: Overall high-density polyurethane foam technology, with good insulation and moisture retention performance;
❺	Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304, no pollution
❻	Refrigeration system: Imported fully enclosed compressor, high efficiency, low noise, long service life;
❼	Control system: Programmable color touch screen controller, with three levels of user rights and audit trail function;more than 7 inches;With three levels of user authority, audit trail;
❽	Data management ：Configure needle type micro printer and electronic data storage function，support to use U disk to export the data.
❾	Safety device: Compressor overheat and overpressure overload protection, independent overtemperature protection alarm system;
❿	Alarm system：On-site beeping alarm;
⓫	Double Door Structure：Interior door tempered glass door,Open the outer door to observe the samples，The temperature inside the container will not change in a short time，The outer door is solid can keep temperature,It can also prevent the influence of external light;
⓬	Other configurations：Test hole、Rubber plug、Mobile casters; Door lock;
⓭	Illumination open：Temperature Fluctuation ＜ ±1.0℃， Temperature deviation of the same layer: ＜ ±2.0℃ ;
⓮	Environment Temperature：+5 ～ 35℃ ;
⓯	Power：AC220V±10% 50HZ;
⓰	Optional: Temperature-humidity deviation, sudden power failure , control by Remote SMS alarm.

Model	Temperature Range ( ℃ )	Capacity (L)	Interior Dimensions(mm) W×D×H	External Dimensions(mm) W×D×H	Power ( kW )	Remarks
Labonce-150TPS-1	15 ~ 50	150	650×490×500	830×790×1250	1.2	1 layer of light, Visible Light+UVA
Labonce-300TPS-2	15 ~ 50	300	550×660×770	850×1030×1570	1.5	2 layers of light, Visible Light+UVA
Labonce-500TPS-2	15 ~ 50	500	660×680×1110	880×1080×1880	1.8	2 layers of light, Visible Light+UVA
Labonce-500TPS-3	15 ~ 50	500	660×680×1110	880×1080×1880	2.1	3 layers of light, Visible Light+UVA
Labonce-1000TPS-3	15 ~ 50	1000	1360×490×1360	1620×910×1990	2.5	3 layers of light, Visible Light+UVA
Labonce-150LTPS-1	2 ~ 30	150	650×490×500	830×790×1250	1.5	1 layer of light, Visible Light+UVA
Labonce-500LTPS-2	2 ~ 30	500	660×680×1110	880×1080×1880	2.1	2 layers of light, Visible Light+UVA
Remarks	TPS:Visible Range：100 ~ 8000Lux,Direct Setting，Illuminance deviation:4500±500Lux；UVA range：0.84 ~ 5w/m2; LTPS:Visible Range：100 ~ 5000Lux,Direct Setting，Illuminance deviation:4500±500Lux；UVA range：0.84 ~ 1w/m2; Illumination requirements：The total illumination is not less than 1.2×106 Lux •hr; UVA energy is not less than 200w •hr/ m2.
