Humidity：40~95%RH Capacity：150L~500L
Read more
TEMP: -20℃
Capacity：150~250LItem NO.:
150-250FCProduct Origin:
CHINA

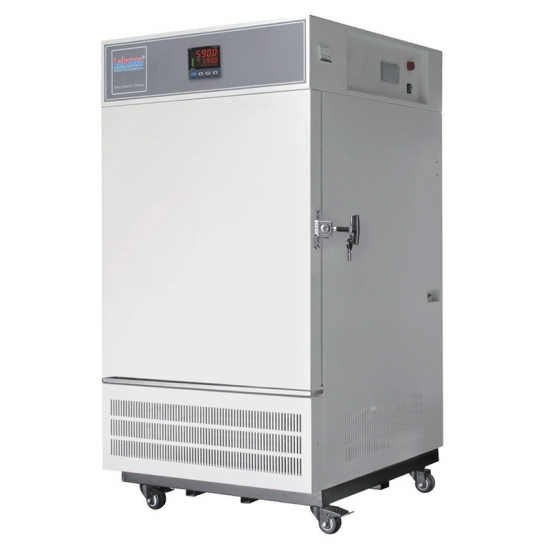

Labonce-FC series medicine preservation box is mainly used for preserving medicines, reagents, vaccines, biological products, blood products, etc. The temperature range is -20℃, which consists of refrigeration system, digital temperature control system, air circulation system, temperature sensor and so on. Put the medicine into the box according to the required settings to adjust the temperature to the optimal refrigeration temperature can be run. When the temperature inside the box is higher than the set temperature, the temperature will be automatically adjusted to the required temperature through the refrigeration system, and there is an alarm for temperature exceeding the standard.
❶ Internal volume: 150L~250L;
❷ Temperature control range: -20℃, temperature fluctuation: ±0.5℃, temperature deviation: ±2.0℃;
❸ Temperature controller: imported digital display controller, high precision, low drift;
❹ Refrigeration compressor: imported hermetic compressor, long life, low noise;
❺ Frosting device: automatic frosting device;
❻ Data printing: GMP-compliant data acquisition system, standardized with needle printer, print data can be stored for a long time;
❼ Data storage: U disk storage, can store more than 1 year temperature history data;
❽ On-site alarm: sound and light alarm for on-site temperature deviation;
❾ Remote alarm: (optional) remote cell phone SMS alarm (with power failure alarm), multiple devices can share a cell phone card;
❿ Chamber material: the inner liner material for the mirror stainless steel 304, shell material for high-quality steel spray molding;
⓫ Safety devices: compressor overheating protection, compressor overpressure protection, compressor overload protection and fan overheating protection;
⓬ Installation power: AC 220V±10% 50HZ;
⓭ Working environment: ＋5～35℃.
⓮ Special Note: Online consultation below the PDF and WORD icons, you can download the color page of this page related information.
|
Name |
Model |
Temperature Range ( ℃ ) |
Capacity (L) |
Interior Dimens W×D×H(mm) |
External Dimens W×D×H(mm) |
Power (kw) |
Shelf (Standard) |
Remarks |
|
Low-temp Chamber (-20℃ ) |
Labonce-150FC |
-20 |
150 |
600×405×620 |
850×890×1520 |
1.0 |
3 |
Solid door |
|
Labonce-250FC |
-20 |
250 |
600×500×830 |
850×990×1690 |
1.5 |
3 |
Stability Chamber 720FT
1)High precision;2)All stainless steel 304 inside and outside;. 3)Temperature:0~70℃;4)Humidity:10~80%RH.
Low-temperature Stability Chamber(BC/RC/FC Series)
Labonce -C Series Low -temperature Stability Chamber,Adopt the brand - new air-way structural design, select the original imported high quality parts and manufacturing process, ensure the long -term continuous operation of the equipment, stable and reliable performance, suitable for temperature sensitive medicine stability test and preservation. ◆ Reference Standard：Medical refrigerator industry standard: YY/T 0086-2020; ◆ Air-way System: The newly air-way system designed achieves uniform of temperature form different parts inside the chamber; ◆ Insulation material: Overall high-density polyurethane foam technology, with good insulation and moisture retention performance; ◆ Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304, no pollution source, easy to clean; ◆ Refrigeration system：Imported fully enclosed industrial compressor, high efficiency, low noise, long life; ◆ Control system：Original imported digital display controller, high precision, low drift; ◆ Safety device: compressor overheat and overpressure overload protection; ◆ Alarm system：On-site beeping alarm; ◆ Other configuration：Test hole、Rubber plug、Mobile casters、Door lock; ◆ Controlling Temperature Precision：BC:Temperature Fluctuation ＜ ±1.0℃；Temperature Deviation ＜ ±2.0℃；Temperature Uniformity ≤ 2.0℃ ; RC:Temperature Fluctuation ＜ ±0. 5℃；Temperature Deviation ＜ ±1.0℃ ; Temperature Uniformity ≤ 1.0℃ ; FC:Temperature Fluctuation ＜ ±0. 5℃；Temperature Deviation ＜ ±2.0℃ ; Temperature Uniformity ≤ 2.0℃ ; ◆ Environment Temperature：+5 ~ 30℃ ; Power：AC220V±10% 50HZ; ◆ Optional: Temperature- humidity deviation, sudden power failure , control by Remote SMS alarm. Name Model Temperature Range ( ℃ ) Capacity (L) Interior Dimensions(mm) W×D×H External Dimensions(mm) W×D×H Power ( kW ) Shelf (Standard) Remarks Storage Chamber (2~14℃ ) Labonce-250BC 2~14 250 600×500×830 780×880×1650 0.6 3 With observation window Labonce-400BC 2~14 400 600×700×950 780×1060×1750 0.8 3 Labonce-500BC 2~14 500 680×680×1080 860×1050×1850 1.0 4 Labonce-800BC 2~14 800 1200×490×1360 1390×890×1960 1.2 4 Labonce-1000BC 2~14 1000 1400×510×1400 1590×890×1980 1.5 4 Low-temperatre Chamber(5℃ ) Labonce-250RC 5 250 600×500×830 780×880×1650 0.6 3 With observation window，Double compressors, one operation and one protection. Labonce-500RC 5 500 680×680×1080 860×1050×1850 1.2 4 Labonce-720RC 5 750 1200×490×1360 1390×890×1960 1.5 4 Labonce-2000RC 5 2000 1500×970×1400 1710×1380×1990 2.0 4 Low-temperatre Chamber(-20℃ ) Labonce-150FC -20 150 600×405×620 850×890×1520 1.0 3 Solid door Labonce-250FC -20 250 600×500×830 850×990×1690 1.5 3
