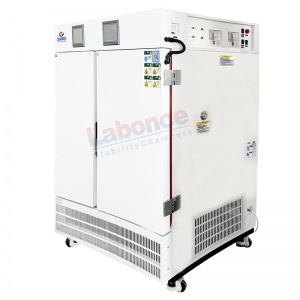

Stability Chamber520LGS

Labonce-LGS Series Stability Test Chamber for Pharmaceutical Packaging Materials

Designed with advanced imported technology, this dual-chamber system features independent control:
Chamber A: Controls temperature, humidity, visible light, and near-UV radiation, with real-time recording of illuminance and UV irradiance. Chamber B: Dedicated to pharmaceutical packaging testing, exclusively controls temperature & humidity, capable of extreme conditions (60°C/10%RH).

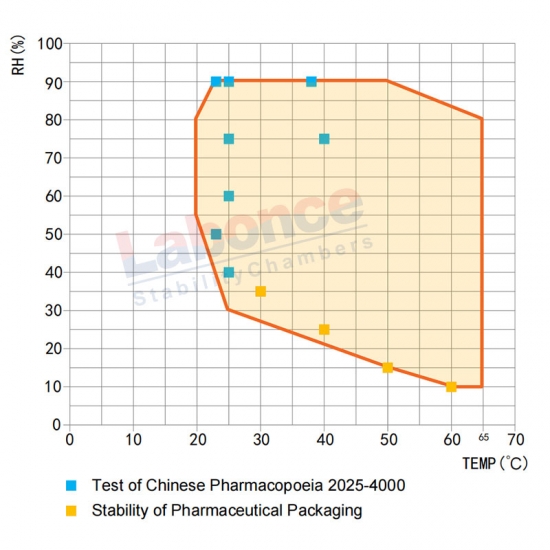

❶ Temperature Range: 15–65°C | Fluctuation: ±0.5°C | Deviation: ±1.0°C
❷ Humidity Range: 10–90%RH | Fluctuation: ±2.0%RH | Deviation: ±3.0%RH
❸ Visible Light: 100–8000 LUX | Total Illuminance: ≥1.2×10⁶ Lux·hr
❹ Near-UV Range: 0.84–5 W/m² | UV Energy: ≥200 W·hr/m²
❺ Unified Control: Temperature, humidity, visible light, and UV parameters integrated into a single touchscreen controller.
❻ Data Printing: Simultaneous printout of temperature, humidity, visible light, and UV values.

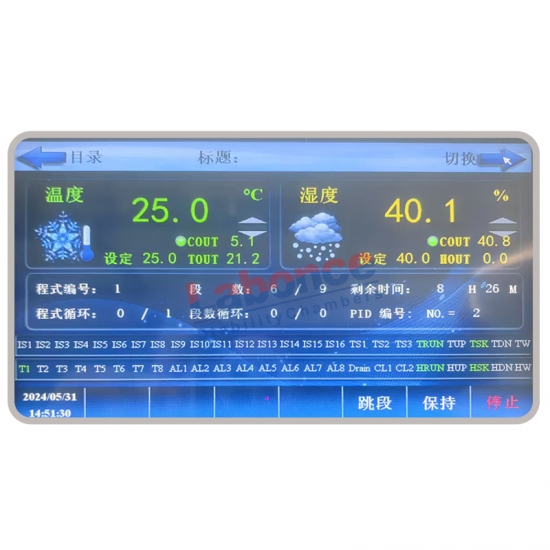

❼ Controller: Large color touchscreen with programmable settings and three-tier access control.
❽ Humidity Sensor: Imported high-precision capacitive sensor (maintenance-free, direct detection).
❾ Compressor: Imported hermetic compressor (long lifespan, low noise).
❿ Advanced Printing: Prints device model/ID, real-time temperature/humidity values, and curves.
⓫ Data Storage: Stores records for over 3 years.
⓬ On-Site Alarm: Audible/visual alerts for deviations; independent over-temperature alarm.
⓭ Remote Alarm: SMS alerts (including power failure); multiple devices share one SIM card.
⓮ Construction: Interior: Mirror-finish 304 stainless steel. Exterior: Powder-coated steel plate.
⓯ Dual-Door Design:Inner tempered glass door for observation. Outer solid door blocks external light.
⓰ Dual Protection: Anti-dry burn system. Independent over-temperature protection (auto power cutoff).
⓱ Safety Features: Compressor overheat/overpressure/overload protection + fan overheat protection.
⓲ Power Supply: AC 220V±10%, 50Hz.
⓳ Operating Environment: +5–35°C (recommended ≤30°C; extreme conditions ≤26°C).
⓴ Note: Click the PDF/WORD icons below to download brochures. Product images are for reference; actual specifications may vary.
