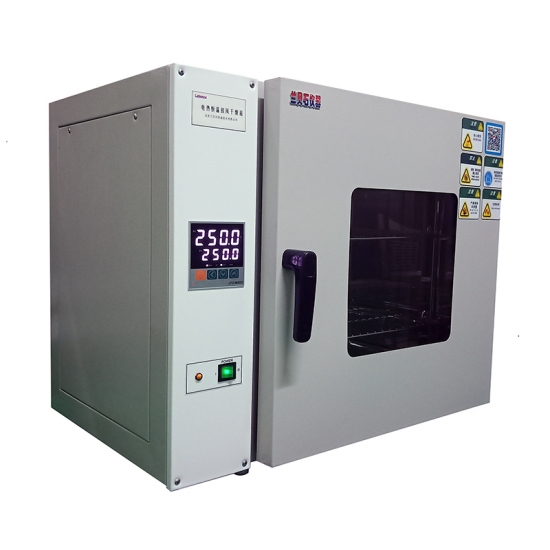

drying oven

Drying oven(270°C)

TEMP:   RT+ 10~200℃/300℃ CAPACITY: 70L~1000L
  • Item NO.:

    9070A-9925A
  • Product Origin:

    CHINA
Product introduction


Products produced using advanced laser and CNC processing equipment; Used in mining enterprises, laboratories, research institutions, etc. for drying, baking, wax melting, and sterilization.


Reference standard: GB/T 30435-2013 Electric drying chamber and electric blast drying chamber;

Chamber material: the chamber body are made of mirror stainless steel argon arc welding, the box outside the use of high-quality steel plate, beautiful and novel shape;

 Air-way system: The hot air circulation system consists of a fan that can run continuously at high temperatures and suitable ducts to improve the temperature uniformity in the working room;

Control system: high- precision microcomputer digital display controller with timing function, timing range: 1-9999min;

Temperature control: The constant temperature fluctuation is ± 1 ℃ , the temperature precision is 0.1 ℃ ;

Environmental temperature: +5~40 ℃ ;

Power: AC 220V ± 10% 50Hz (AC 380V ± 10% 50Hz);

Optional: Programmable color touch screen controller with multiple program and fixed value functions, with three- level user permissions and audit tracking function.



Name

Model

Temperature Range

( ℃ )

Capacity

(L)

Interior

Dimensions(mm)

W×D×H

External

Dimensions(mm)

W×D×H

Power (kW)

Shelf     (Standard)

Remarks







Drying Oven

(Long term use within 270 ℃)

Labonce-9075A

RT+10 ~ 300

70

450×400×450

740×618×630

1.0

2



Adapted power supply:

220V

Labonce-9145A

RT+10 ~ 300

140

550×450×550

840×670×730

1.5

2

Labonce-9245A

RT+10 ~ 300

240

600×500×750

880×720×930

2.5

2

Labonce-9425A

RT+10 ~ 300

420

640×585×1355

780×750×1880

3.1

3



Adapted power supply:

380V

Labonce-9625A

RT+10 ~ 300

620

780×600×1355

980×800×1880

4.0

4

Labonce-9925A

RT+10 ~ 300

1000

1000×600×1600

1140×800×2150

5.2

4
