Humidity:40~95%RH Capacity:150L~500L
Read moreItem NO.:
6090VC-6210VCProduct Origin:

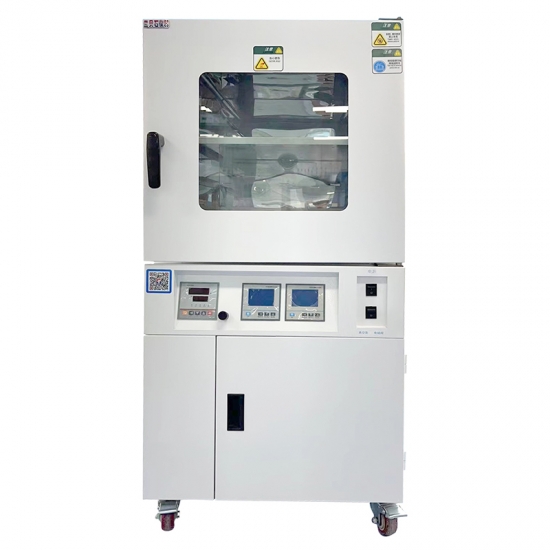

CHINAVC series vacuum drying oven is equipped with a vacuum pump as standard, and is equipped with a resistance silicon tube pressure sensor to achieve digital display of vacuum degree. It can also achieve continuous vacuum drying by setting the upper and lower limits of vacuum degree and the number of cycles, improving experimental or production efficiency.
❶
Control system: LCD program temperature controller with timing function, precise and reliable temperature control;
❷
Control precision: Constant temperature fluctuation: ± 1.0 ℃ ; Temperature precision: 0.1 ℃ ;
❸
Vacuum precision: Equipped with resistance silicon tube pressure sensor, vacuum data display, control precision of ± 1%;
❹
Standard configuration: vacuum pump.
Name |
Model |
Temperature Range ( ℃ ) |
Capacity (L) |
Interior Dimensions(mm) W×D×H |
External Dimensions(mm) W×D×H |
Power (kW) |
Shelf (Standard) |
Remarks |
High precision vacuum drying oven (Vacuum data display) |
Labonce-6090VC |
RT+10~200℃ |
90 |
450×450×450 |
610×680×1460 |
1.7 |
2 |
2 layers of independent temperature control |
Labonce-6210VC |
RT+10~200℃ |
210 |
560×600×640 |
720×820×1750 |
2.0 |
2 |
2 layers of independent temperature control |
Previous :
Vacuum Drying Oven(50L~420L)Next :
Drying oven(220°C)Labonce - LGS series medicine stability chamber is equipped with ultra - low humidity control function, which meets the requirements of the 2020 Pharmacopoeia and is suitable for GMP and CGMP certified users. ◆ Reference Standard:ICHQ1(A)、Chinese Pharmacopoeia 2020 edition; ◆ Ultra low humidity, special conditions for cartridge testing; ◆ Insulation material: Overall high-density polyurethane foam technology, with good insulation and moisture retention performance; ◆ Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304, no pollution source, easy to clean; ◆ Control system:Programmable color touch screen controller; ◆ Refrigeration system: Imported fully enclosed compressor, high efficiency, low noise, long service life; ◆ Data management :Configure needle type micro printer and electronic data storage function,support to use U disk to export the data. ◆ Safety device: compressor overheat and overpressure overload protection, water shortage protection, dry burning protection system, independent overtemperature protection alarm system; ◆ Alarm system:On-site beeping alarm; ◆ Double Door Structure:Interior door tempered glass door,Open the outer door to observe the samples,The temperature and humidity inside the container will not change in a short time,The outer door is solid can keep temperature and humidity,It can also prevent the influence of external light; ◆ Other configurations:Test hole、Rubber plug、Mobile casters、Door lock; ◆ Special indicators: able to meet 60℃ /10%RH, 25℃ /20%RH special conditions (ambient temperature below 25℃ ); ◆ Controlling Temperature Precision:Temperature Fluctuation < ±0. 5℃;Temperature Deviation < ±1.0℃ ; ◆ Controlling Humidity Precision:Humidity Fluctuation < ±3%RH;Humidity Deviation < ±3%RH; ◆ Environment Temperature:+5 ~ 35℃ ; ◆ Power:AC220V±10% 50HZ. ◆ Optional: Temperature- humidity deviation, sudden power failure , control by Remote SMS alarm. Model Temperature Range ( ℃ ) Humidity Range (RH) Capacity (L) Interior Dimensions(mm) W×D×H External Dimensions(mm) W×D×H Power ( kW ) Shelf (Standard) Remarks Labonce-250LGS 15 ~ 65 10 ~ 90% 250 600×500×830 780×880×1650 1.5 3 Single(Temperature+Humidity) Labonce-500LGS 15 ~ 65 10 ~ 90% 500 680×680×1080 860×1050×1850 2.2 4 Single(Temperature+Humidity) Labonce-520LGS 15 ~ 65 10 ~ 90% 250 600×500×830 1610×870×1650 3.0 3 A(Temperature+Humidity) 250 600×500×830 3 B(Temperature+Humidity) Labonce-520LCGS 15 ~ 65 10 ~ 90% 250 600×500×830 1610×870×1650 3.5 3 A(Temperature+Humidity+Visible Light+UVA) 250 600×500×830 3 B(Temperature+Humidity) Remarks LCGS series: A chamber with temperature, humidity, visible light, UVA four functions, illuminance measurement standard with visible light and UVA sensor, the visible light value and UVA value are automatically printed and stored; visible light range: 100 ~ 8000Lux, 4500 ± 500Lux, Total illuminance of the light test is not less than 1.2×106 Lux-hr; UVA range: 0.84 ~ 5w/ ㎡ , UVA total energy of not less than 200w-hr/ ㎡ ;When there is no light, the temperature and humidity indicators are the same as LGS.
