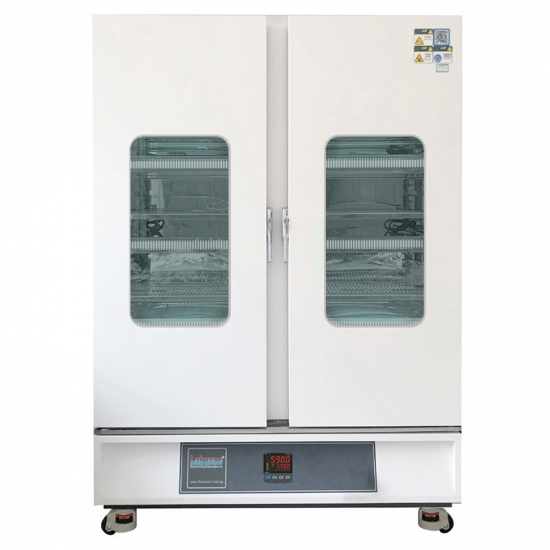

Low-temperatre Chamber(5℃)

Low-temperatre Chamber(5℃)

TEMP:5Capacity:250-2000L
  • Item NO.:

    250~2000RC
  • Product Origin:

    CHINA
Product introduction

Labonce-C Series  Low -temperature Stability Chamber,Adopt the brand-new air-way structural design, select the original imported high quality parts and manufacturing process, ensure the long -term continuous operation of the equipment,stable and reliable performance, suitable for temperature sensitive medicine stability test and preservation.


Reference Standard:Medical refrigerator industry standard: YY/T 0086-2020;

Air-way System: The newly air-way system designed achieves uniform of temperature form different parts inside the chamber;

Insulation material: Overall high-density polyurethane foam technology, with good insulation and moisture retention performance;

Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304, no pollution source, easy to clean;

Refrigeration system:Imported fully enclosed industrial compressor, high efficiency, low noise, long life;

Control system:Original imported digital display controller, high precision, low drift;

Safety device: compressor overheat and overpressure overload protection;

Alarm system:On-site beeping alarm;

Other configuration:Test hole、Rubber plug、Mobile casters、Door lock;

Controlling Temperature Precision:

BC:Temperature Fluctuation <  ±1.0℃;Temperature Deviation <  ±2.0℃;Temperature Uniformity ≤ 2.0℃ ;

RC:Temperature Fluctuation <  ±0. 5℃;Temperature Deviation <  ±1.0℃ ;Temperature Uniformity ≤ 1.0℃ ;

FC:Temperature Fluctuation <  ±0. 5℃;Temperature Deviation <  ±2.0℃ ;Temperature Uniformity ≤ 2.0℃ ;

Environment Temperature:+5 ~  30℃ ;        Power:AC220V±10% 50HZ;

Optional: Temperature- humidity deviation, sudden power failure , control by Remote SMS alarm.



Name

Model

Temperature

Range

( ℃ )

Capacity

(L)

Interior Dimensions(mm)

W×D×H

External Dimensions(mm)

W×D×H

Power

(kW)

Shelf

(Standard)

Remarks



Low-temperatre Chamber

(5℃)

Labonce-250RC

5

250

600×500×830

780×880×1650

0.6

3

With observation  windowDouble  compressors, one operation and one protection.

Labonce-500RC

5

500

680×680×1080

860×1050×1850

1.2

4

Labonce-720RC

5

750

1200×490×1360

1390×890×1960

1.5

4

Labonce-2000RC

5

2000

1500×970×1400

1710×1380×1990

2.0

4
