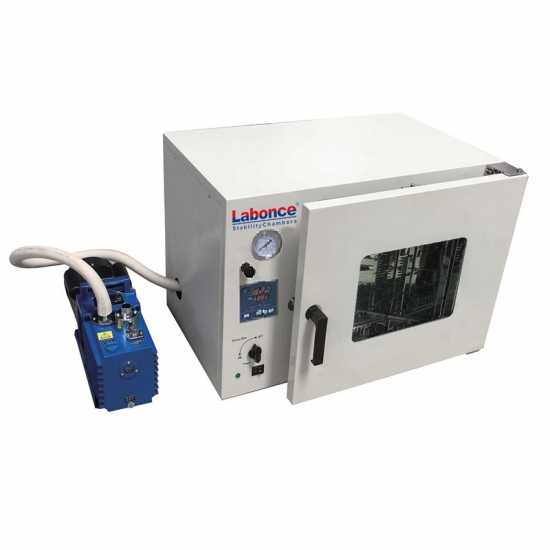

Vacuum Drying Oven(50L~420L)

TEMP: RT+ 10～200℃

Capacity: 50L~420L

Item NO.:
6050-6500ZK
Product Origin:
CHINA

Online consulting

Product introduction

The vacuum drying Oven is designed specifically for drying heat-sensitive, easily decomposable, and oxidizable substances. It can fill the interior with inert gas, especially for some items with complex components that can be quickly dried.

❶	Reference standard: GB/T 29251-2012 vacuum drying chamber;
❷	Structural design: The structural design is more reasonable, the operation is simpler, andthe sample rack is placed more reasonably;
❸	Internal material: The studio is made of mirror faced stainless steel plate material,ensuring that the product is durable and easy to clean;
❹	Control system: Microcomputer digital temperature controller with timing function, precise and reliable temperature control;
❺	Control precision: Constant temperature fluctuation: ± 1 ℃ ;Temperature precision: 0.1 ℃;The vacuum degree can reach 133Pa;
❻	Door structure: Tempered and bulletproof double layer glass doors allow for clear observation of objects in the studio at a glance;
❼	Seal ring: The door closure is adjustable, and the synthetic silicon door seal ring is formed as a whole to ensure keep high vacuum inside the chamber;
❽	Power: AC220V ± 10% 50Hz (380V for 6500ZK);
❾	Optional: program table, inert gas intake valve, drying tank, oil filter, etc.

Name	Model	Temperature Range ( ℃ )	Capacity (L)	Interior Dimensions(mm) W×D×H	External Dimensions(mm) W×D×H	Power ( kW )	Shelf (Standard)	Remarks
Vacuum Dring Oven (Vacuum degree pointer display)	Labonce-6050ZK	RT+10 ~ 200	50	415×370×345	710×560×550	1.1	2	No vacuum pump
	Labonce-6090ZK	RT+10 ~ 200	90	450×450×450	610×680×1460	1.7	2	Standard vacuum pump Two layers independent temperature control
	Labonce-6210ZK	RT+10 ~ 200	210	560×600×640	720×820×1750	2.0	3	Standard vacuum pump Three layers independent temperature control
	Labonce-6500ZK	RT+10 ~ 200	420	630×810×840	790×1030×1860	3.6	4	Standard vacuum pump Four layers independent temperature control
