Humidity:40~95%RH Capacity:150L~500L
Read moreItem NO.:
100~1000HTProduct Origin:

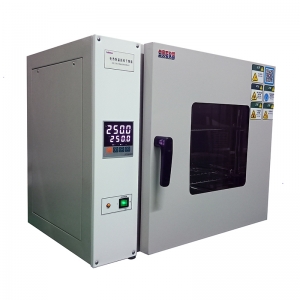

CHINALabonce - HT series Precise Blast Dr ying Chamber,Adopt the brand new structural design,Stable and reliable,performance, Suitable for high temperature test of electrical and electronic products and materials.
❶ |
Air-way system: a new air-way system design, three sides of the air, good temperature uniformity in different locations within the chamber; |
❷ |
Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel; |
❸ |
Control system: imported digital display meter controller; |
❹ |
Safety device: Equipped with an independent overtemperature protection system to protect the safety of samples and equipment; |
❺ |
Temperature control accuracy:Temperature Fluctuation <±0. 5℃,Temperature Deviation < ±2.0℃ ( < 150℃ ),Temperature Deviation < ±3.0℃ ( < 300℃ ); |
❻ |
Power:AC220V±10% 50HZ(AC 380V±10% 50HZ). |
Name
Model
Temperature Range
( ℃ )
Capacity
(L)
Interior Dimensions(mm)
W×D×H
External Dimensions(mm)
W×D×H
Power
( kW )
Shelf
(Standard)
Remarks
Precise Blast Drying
Oven
(200℃ )
Labonce-100HT
RT+10 ~ 200
100
450×450×500
1100×700×800
2.0
2
Temperature Deviation(℃): ±2.0(150 ℃)
Labonce-250HT
RT+10 ~ 200
250
600×600×700
1250×850×1000
2.5
2
Labonce-500HT
RT+10 ~ 200
500
800×700×900
1450×1200×1200
3.5
2
Labonce-1000HT
RT+10 ~ 200
1000
1000×1000×1000
1650×1650×1300
4.0
4

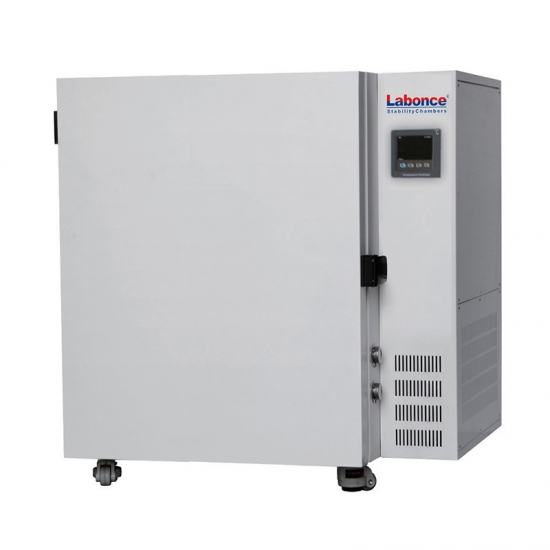

Labonce -C Series Low -temperature Stability Chamber,Adopt the brand - new air-way structural design, select the original imported high quality parts and manufacturing process, ensure the long -term continuous operation of the equipment, stable and reliable performance, suitable for temperature sensitive medicine stability test and preservation. ◆ Reference Standard:Medical refrigerator industry standard: YY/T 0086-2020; ◆ Air-way System: The newly air-way system designed achieves uniform of temperature form different parts inside the chamber; ◆ Insulation material: Overall high-density polyurethane foam technology, with good insulation and moisture retention performance; ◆ Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304, no pollution source, easy to clean; ◆ Refrigeration system:Imported fully enclosed industrial compressor, high efficiency, low noise, long life; ◆ Control system:Original imported digital display controller, high precision, low drift; ◆ Safety device: compressor overheat and overpressure overload protection; ◆ Alarm system:On-site beeping alarm; ◆ Other configuration:Test hole、Rubber plug、Mobile casters、Door lock; ◆ Controlling Temperature Precision:BC:Temperature Fluctuation < ±1.0℃;Temperature Deviation < ±2.0℃;Temperature Uniformity ≤ 2.0℃ ; RC:Temperature Fluctuation < ±0. 5℃;Temperature Deviation < ±1.0℃ ; Temperature Uniformity ≤ 1.0℃ ; FC:Temperature Fluctuation < ±0. 5℃;Temperature Deviation < ±2.0℃ ; Temperature Uniformity ≤ 2.0℃ ; ◆ Environment Temperature:+5 ~ 30℃ ; Power:AC220V±10% 50HZ; ◆ Optional: Temperature- humidity deviation, sudden power failure , control by Remote SMS alarm. Name Model Temperature Range ( ℃ ) Capacity (L) Interior Dimensions(mm) W×D×H External Dimensions(mm) W×D×H Power ( kW ) Shelf (Standard) Remarks Storage Chamber (2~14℃ ) Labonce-250BC 2~14 250 600×500×830 780×880×1650 0.6 3 With observation window Labonce-400BC 2~14 400 600×700×950 780×1060×1750 0.8 3 Labonce-500BC 2~14 500 680×680×1080 860×1050×1850 1.0 4 Labonce-800BC 2~14 800 1200×490×1360 1390×890×1960 1.2 4 Labonce-1000BC 2~14 1000 1400×510×1400 1590×890×1980 1.5 4 Low-temperatre Chamber(5℃ ) Labonce-250RC 5 250 600×500×830 780×880×1650 0.6 3 With observation window,Double compressors, one operation and one protection. Labonce-500RC 5 500 680×680×1080 860×1050×1850 1.2 4 Labonce-720RC 5 750 1200×490×1360 1390×890×1960 1.5 4 Labonce-2000RC 5 2000 1500×970×1400 1710×1380×1990 2.0 4 Low-temperatre Chamber(-20℃ ) Labonce-150FC -20 150 600×405×620 850×890×1520 1.0 3 Solid door Labonce-250FC -20 250 600×500×830 850×990×1690 1.5 3
