TH Series

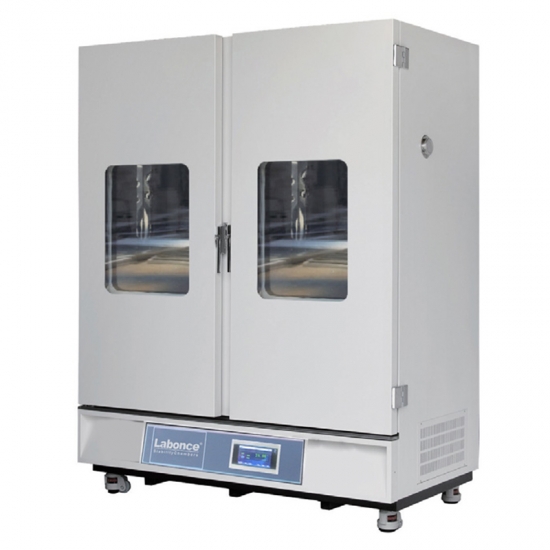

Constant Temperture & Humidity Chamber(800TH~1000TH,0~100℃)

Humidity:20~95%RH Capacity:800~1000L
  • Item NO.:

    800TH~1000TH
  • Product Origin:

    CHINA
Product introduction


Reference standard: GB/T 10586-2006 Humid heat test chamber technical conditions;

Air-way System: The newly air-way system designed achieves uniform of temperature form different parts inside the chamber;

Insulation material: Overall high-density polyurethane foam technology, with good insulation and moisture retention performance;

 Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304, no pollution source, easy to clean;

 Refrigeration system: Imported fully enclosed compressor, high efficiency, low noise, long life;

Control system: programmable color touch screen controller with multi-segment program and fixed value function;

Data management :Electronic data storage function, which can export data through a USB flash drive;

Humidity control: Original imported capacitive humidity sensor, high precision, low drift, long service life, maintenance free;

Safety device: Anti dry burning protection system, independent overtemperature protection system, on-site buzzer alarm;

Other configuration: Test hole、Rubber plug、Mobile casters、Door lock ;

 Temperature control Precision: temperature fluctuation<± 0.5 ℃ ; Temperature deviation<± 1.0 ℃ ;Temperature uniformity ≤2.0°C;

Humidity control  Precision: humidity fluctuation<± 3% RH; Humidity deviation<± 3% RH (control humidity>75% RH),Humidity deviation<± 5% RH (control humidity ≤ 75% RH);

Environmental temperature:+5~35 ℃ ;

Power: AC220V ± 10% 50Hz;

Optional: Printer ; Lighting.



Model

Temperature Range

( ℃ )

Humidity control range

(RH)

Capacity

(L)

Interior Dimensions(mm)

W×D×H

External Dimensions(mm)

W×D×H

Power

( kW )

Shelf

(Standard)

Remarks

Labonce-150TH-T

0 ~ 100

20~95%

150

600×405×620

780×830×1480

1.5

3

Equipped

with high

temperature

resistant

capacitive

humidity sensor

Labonce-250TH-T

0 ~ 100

20~95%

250

600×500×830

780×870×1650

1.8

3

Labonce-400TH-T

0 ~ 100

20~95%

400

600×700×950

780×1060×1750

2.2

3

Labonce-500TH-T

0 ~ 100

20~95%

500

680×680×1080

860×1050×1850

2.5

4

Labonce-800TH-T

0 ~ 100

20~95%

800

1200×490×1360

1390×890×1960

3.0

4

Labonce-1000TH-T

0 ~ 100

20~95%

1000

1400×510×1400

1590×890×1980

3.5

4
