Labonce Walk-In Stability Chamber
Product categories
Latest product
Photo Stability chamber
Photo Stability chamber
Photo Stability chamber

Photo Stability chamber small size

Temperature:15~50 Capacity:150L~800L
  • Item NO.:

    150TPS~800TPS
  • Product Origin:

    CHINA
Product introduction

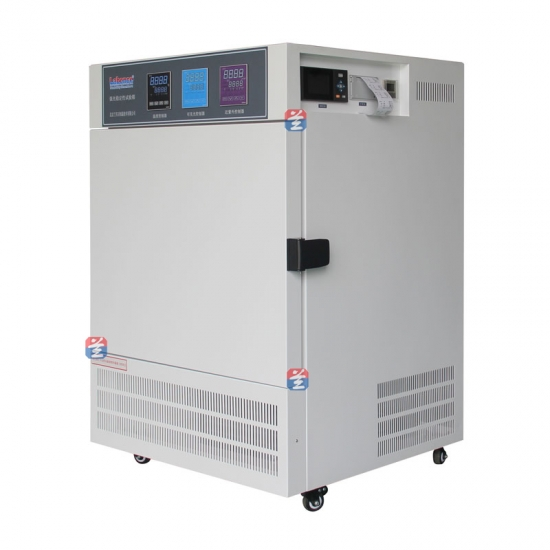

Labonce-TPS medicine high-light stability chambers is equipped with visible light and near-ultraviolet lamp tube, which can independently control the type of light source, and can print and record visible light illumination and near-ultraviolet radiation in real time. Visible light and near-ultraviolet can be directly set, automatically adjusted and precisely controlled.


Capacity: 150L~800L

Temperature Range: 15~50℃, Fluctuation:±0.5℃, Deviation: ±2.0℃(SAME LEVEL)

Light Range: Visible light range: 100 ~ 8000LUX; Total illumination should not be less than 1.2 x 10^6Lux·hr;

UV range: NUV range: 0.84 ~ 5w/m squared; The near-UV energy is no less than 200w•hr/㎡

UV wavelength: NUV wavelength: 320 ~ 400nm;

Illumination Control: Temperature, visible light and near-ultraviolet parameters are directly set and controlled on the controller.

Illumination printing: Printing temperature, visible light and near UV at the same time.

Three kinds of controller: Original imported temperature controller, original imported visible light controller, original imported near-ultraviolet controller;

Illumination Sensor: With visible light sensor and near-ultraviolet sensor;

Refrigeration Compressor: full-closed compressor imported from original, long life, low noise;

Data Printing: Can print temperature value, visible value and NUV value;

Field Alarm: On-site temperature deviation sound-light alarm, independent over-temperature alarm;

Interior Material: Mirror surface Stainless steel 304

External Material: Steel powder coatedPlastic spraying of high quality steel plate;

Dual Protections: Independent overheat protection warning system,Equipped with independent overtemperature protection system, the power can be cut off automatically.
Safety Device: Compressor and blower overheat protection system, Over temperature protection, overpressure &overload protection for compressor

Remote Alarm: Remote SMS alarm (with power cut alarm) is optional. Multiple devices can share one mobile card (optional).

Power Source: AC 220V±10%  50HZ

Ambient Temperature: +5-35℃

Special Description: Click the PDF or WORD icon, you can download the catalog .



MODEL

TEMP.RANGE
(℃)

HUMI.RANGE
(RH)

CAPACITY

(L)

INTERNAL DIMEN. (mm) W×D×H

EXTERNAL DIMEN. (mm) W×D×H

POWER
(kW)

TRAY

REMARKS

Labonce-150TPS

1550

0

150

 650×500×500

 800×700×1150

1.0

1



Labonce-250TPS

1550

0

250

 600×500×830

 760×870×1650

1.5

2



Labonce-500TPS

1550

0

500

 680×680×1070

 840×1050×1850

2.0

4



Labonce-800TPS

1550

0

800

1200×510×1300

 1350×800×1800

2.5

4
