Labonce Walk-In Stability Chamber
Product categories
Latest product
LGS series: Special for medicine packages
LGS series: Special for medicine packages

Stability Chamber(250L+250L)

Humidity:10~90%RH Capacity:520LGS/LCGS
  • Item NO.:

    520LGS/LCGS
  • Product Origin:

    CHINA
Product introduction

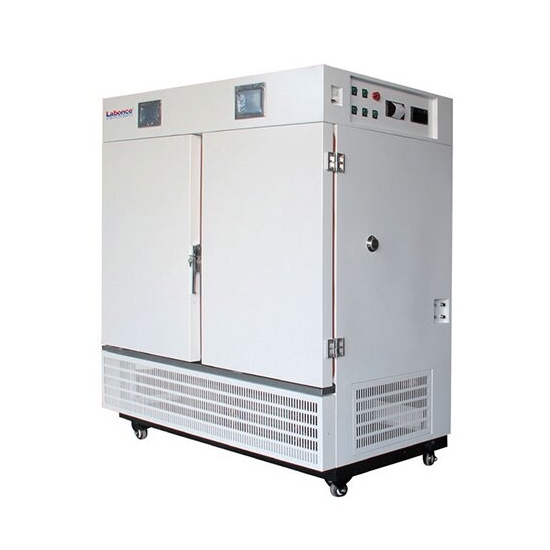

Labonce-LGS series medicine stability chamber is equipped with ultra-low humidity control function, which meets the requirements of the 2020 Pharmacopoeia and is suitable for GMP and CGMP certified users. Stability Chamber(LGS series: Special for medicine packages)


Reference Standard:ICH2003、Chinese Pharmacopoeia 2020 edition;

Ultra low humidity, special conditions for cartridge testing;

Insulation material: Overall high-density polyurethane foam technology, with good insulation and moisture retention performance;

Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304, no pollution source, easy to clean;

Control system:Programmable color touch screen controller;With three levels of user authority, audit trail;

Refrigeration system: Imported fully enclosed compressor, high efficiency, low noise, long service life;

Data management :Configure needle type micro printer and electronic data storage function,support to use U disk to export the data.

Safety device: compressor overheat and overpressure overload protection, water shortage protection, dry burning protection system, independent overtemperature protection alarm system;

Alarm system:On-site beeping alarm;

Double Door Structure:Interior door tempered glass door,Open the outer door to observe the samples,The temperature and humidity inside the container will not change in a short time,The outer door is solid can keep temperature and humidity,It can also prevent the influence of external light;

Other configurations:Test hole、Rubber plug、Mobile casters、Door lock;

Special indicators: able to meet 60℃ /10%RH, 25℃ /20%RH special conditions (ambient temperature below 25℃ );

Controlling Temperature Precision:Temperature Fluctuation < ±0.5℃;Temperature Deviation < ±1.0℃ ;

Controlling Humidity Precision:Humidity Fluctuation < ±3%RH;Humidity Deviation < ±3%RH;

Environment Temperature:+5 ~ 35℃ ;

Power:AC220V±10% 50HZ.

Optional: Temperature-humidity deviation, sudden power failure , control by Remote SMS alarm.


Model

Temperature Range

( ℃ )

Humidity Range (RH)

Capacity

(L)

Interior

Dimensions

(mm)

W×D×H

External Dimensions

(mm)

W×D×H

Power

(kw)

Shelf

(Standard)

Remarks

Labonce-520LGS

15~65

10~90%

250

600×500×830

1610×870×1650

3.0

3

A

(Temperature

+Humidity)

250

600×500×830

3

B

(Temperature

+Humidity)

Labonce-520LCGS

15~65

10~90%

250

600×500×830

1610×870×1650

3.5

3

A

(Temperature

+Humidity

+Visible Light

+UVA)

250

600×500×830

3

B

(Temperature

+Humidity)



Remarks

LCGS series: A chamber with temperature, humidity, visible light, UVA four functions, illuminance measurement standard with visible light and UVA     sensor, the visible light value and UVA value are automatically printed and stored; visible light range: 100 ~ 8000Lux, 4500 ± 500Lux, Total illuminance of the light test is not less than 1.2×106 Lux-hr; UVA range: 0.84 ~ 5w/  , UVA total energy of not less than 200w-hr/  ;When there is no light, the   temperature and humidity indicators are the same as LGS.
