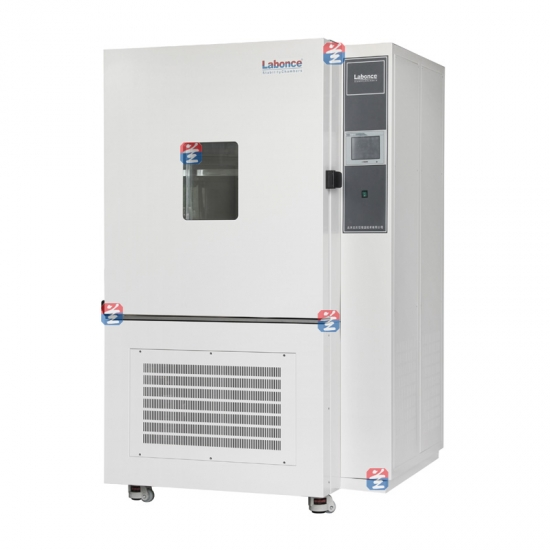

High-low temperature chamber use for electronic products（GDJ/GD）

Labonce-GDJ/GD series high and low temperature test box is applied to the adaptability test of electrotechnics, electronic products, their original devices, and other materials when they are stored, transported and used in high and low temperature environment. Under low temperature, high temperature and other conditions, the physical and other related characteristics of the product are simulated and tested. After the test, the performance of the product can be judged by the test and whether it still meets the predetermined requirements for product design, improvement, identification and delivery inspection.


Capacity: 100L~1000L

Temperature Range: GDJA:-20～150℃；GDJB:-40～150℃；GDJC:-60～150℃

Temperature fluctuation degree: < plus or minus 0.5 ℃; The heating rate: 3 ℃ / min; The cooling rate: 1 ℃ / min.

Temperature deviation: < plus or minus 2.0 ℃;

Temperature controller: original imported color touch screen controller,5 inches above, program control, with three-level permission code;

Refrigeration compressor: full-closed compressor imported from the original, with two main and auxiliary engines working, long life and low noise;

Data storage:SD card storage, can store temperature and humidity above 5 years;

Interior material: Mirror surface Stainless steel 304

External material: Steel powder coated

Safety device: compressor overheat protection and overpressure overload protection; Fan overheat protection;

Field alarm: temperature upper and lower limit deviation alarm; Independent overtemperature protection alarm system;
