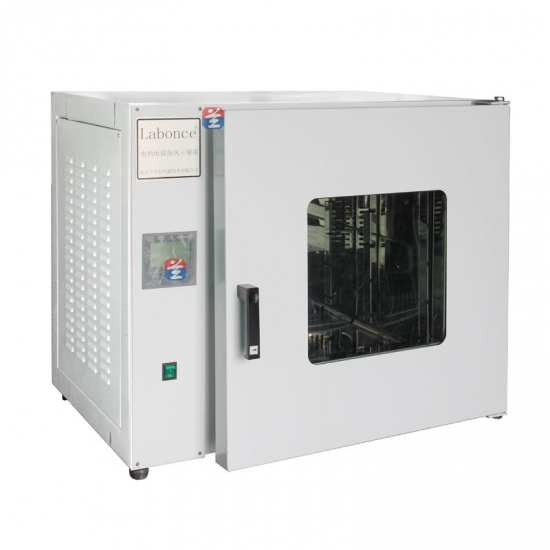

Drying oven（220°C）

TEMP: RT+ 10～200℃/300℃

CAPACITY: 70L~1000L

Item NO.:
9070AL-9920AL
Product Origin:
CHINA

Online consulting

Product introduction

Products produced using advanced laser and CNC processing equipment; Used in mining enterprises, laboratories, research institutions, etc. for drying, baking, wax melting, and sterilization.

❶	Reference standard: GB/T 30435-2013 Electric drying chamber and electric blast drying chamber;
❷	Chamber material: the chamber body are made of mirror stainless steel argon arc welding, the box outside the use of high-quality steel plate, beautiful and novel shape;
❸	Air-way system: The hot air circulation system consists of a fan that can run continuously at high temperatures and suitable ducts to improve the temperature uniformity in the working room;
❹	Control system: high- precision microcomputer digital display controller with timing function, timing range: 1-9999min;
❺	Temperature control: The constant temperature fluctuation is ± 1.0 ℃ , the temperature precision is 0.1 ℃ ;
❻	Environmental temperature: +5~40 ℃ ;
❼	Power: AC 220V ± 10% 50Hz (AC 380V ± 10% 50Hz);
❽	Optional: Programmable color touch screen controller with multiple program and fixed value functions, with three- level user permissions and audit tracking function.

Name	Model	Temperature Range ( ℃ )	Capacity (L)	Interior Dimensions(mm) W×D×H	External Dimensions(mm) W×D×H	Power ( kW )	Shelf (Standard)	Remarks
Drying Oven (Long term use within 220 ℃)	Labonce-9070AL	RT+10 ~ 200	70	450×400×450	740×618×630	1.0	2	Adapted power supply： 220V
	Labonce-9140AL	RT+10 ~ 200	140	550×450×550	840×670×730	1.5	2
	Labonce-9240AL	RT+10 ~ 200	240	600×500×750	880×720×930	2.5	2
	Labonce-9420AL	RT+10 ~ 200	420	640×585×1355	780×750×1880	3.1	3	Adapted power supply： 380V
	Labonce-9620AL	RT+10 ~ 200	620	780×600×1355	980×800×1880	4.0	4
	Labonce-9920AL	RT+10 ~ 200	1000	1000×600×1600	1140×800×2150	5.2	4
