Labonce Walk-In Stability Chamber
Product categories
Latest product
Stability chamber
Stability chamber

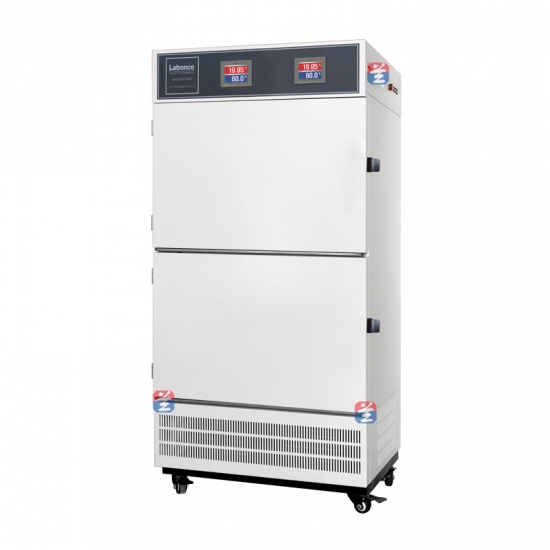

Stability Chamber(150L+150L,UVA)

Humidity:20~95%RH Capacity:320L
  • Item NO.:

    320CGS
  • Product Origin:

    CHINA
Product introduction

Labonce -GS/CGS series two -chamber comprehensive medicine stability tester, GS

 series two -chamber independent control of temperature and  humidity, CGS series with an additional  layer of  lighting system, to  meet the  requirements of the  2020 Pharmacopoeia and ICH regulations, suitable for GMP and CGMP certification users.


Reference Standard:ICH2003、Chinese Pharmacopoeia 2020 edition;

Insulation material: Overall high-density polyurethane foam technology, with good insulation and moisture retention performance;

Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304, no pollution source, easy to clean;

 Control system: Programmable color touch screen controller;

Refrigeration system: Imported fully enclosed compressor;

Humidity control: Original imported capacitive humidity sensor, high precision, low drift, long life, maintenance free;

Data management: configuring needle micro printers and electronic data storage functions;

Safety device: Compressor overheat and overpressure overload protection, water shortage protection, dry burning protection system, independent overtemperature protection alarm system;

Alarm system::On-site beeping alarm;

Double Door structure:Interior door tempered glass door,Open the outer door to observe the samples,The temperature and humidity inside the container will not change in a short time,The outer door is solid can keep temperature and humidity,It can also prevent the influence of external light;

 Other configurations:Test hole、Rubber plug、Mobile casters、Door lock;

Controlling Temperature Precision:Temperature Fluctuation <  ±0. 5℃;Temperature Deviation <  ±1.0℃ (Without light);

Controlling Humidity Precision:Humidity Fluctuation <  ±2%RH;Humidity Deviation <  ±3%RH(Without light);

Power:AC220V±10% 50HZ;

Environment Temperature:+5  ~  35℃ ;

Optional: Temperature- humidity deviation, sudden power failure , control by Remote  SMS alarm.



Model

Temperature

Range

( ℃ )

Humidity Range

(RH)

Capacity

(L)

Interior

Dimensions(mm)

W×D×H

External

Dimensions(mm)

W×D×H

Power

(kW)

Shelf

(Standard)

Chamber Structure

Remarks

Labonce-320CGS

15 ~  65

20 ~ 95%

150

680×500×460

860×840×1880

2.5

2

UP

 A(Temperature

+Humidity

+Visible

Light+UVA)

B(Temperature

+Humidity)

150

680×500×460

2

Down

Labonce-520CGS

15 ~  65

20 ~ 95%

250

600×500×830

1610×870×1650

3.0

3

Left

250

600×500×830

3

Right

Labonce-620CGS

15 ~  65

20 ~ 95%

300

600×500×1000

1610×870×1820

3.5

3

Left

300

600×500×1000

3

Right



Remark

CGS series: A chamber has four functions: temperature, humidity, visible light, and UVA. Illumination measurement is equipped with visible light and UVA   sensors as standard, and both visible and UVA values are automatically printed and stored; Visible light range: 100-8000Lux, illumination deviation: 4500 ± 500Lux; The total illumination of the lighting test shall not be less than 1.2 × 106  Lux· hr  UVA range: 0.84~5w/  , with a total UVA energy of no less than 200w · hr/  ; When there is no light, the temperature and humidity indicators are the same as GS.
