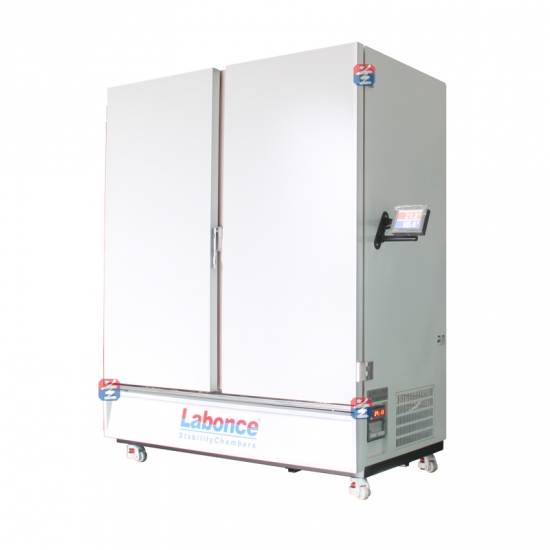

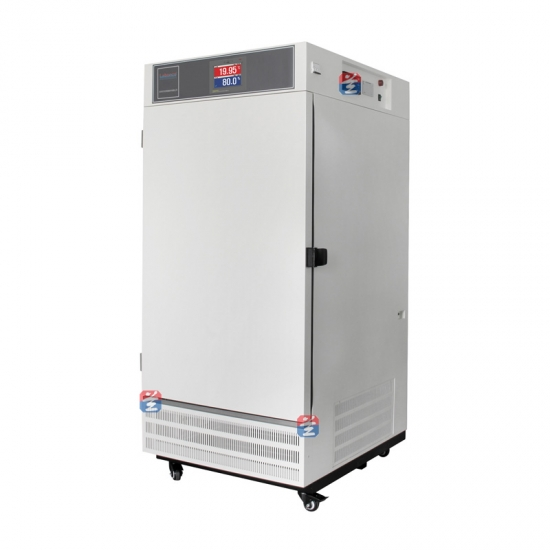

Stability chamber with small temperature deviation

 Labonce-CFS series of medicine adopts the latest structure design and selects quality components imported from original packaging to ensure long-term continuous operation of the equipment and stable and reliable


Capacity: 150L~1000L

Temperature Range:15～65℃, Fluctuation:±0.5℃, Deviation: ±1.0℃

Humidity Range: 20～95%RH,Fluctuation:±3.0%RH, Deviation: ±3.0%RH

Light Range:Visible light range:100-6000LUX;Total illumination not less than 1.2*10^6Lux.HR

Ultraviolet Range :Near ultraviolet range :0.84-5w/㎡；near-ultraviolet energy  is no  less than 200w·hr/㎡

Ultraviolet Wavelength:near ultraviolet wavelength:320-400nm;

Illumination Control:The four parameters of temperature humidity,visible light and near-ultraviolet are centrally controlled on a touch screen controller

Illuminance Printing: It can print four values of temperature, humidity, visible light and near-ultraviolet at the same time.

Temperature and Humidity controller:Original imported color touch screen controller,5 inches above, program control, with three-level permission code;

Humidity Sensor:Imported VAISALA capacitive humidity sensor, which is directly detected without maintenance;

Refrigeration Compressor: Full-closed compressor imported from original, long life, low noise;

Data Printing: The type and number of equipment can be printed, temperature and humidity value and curve can be printed at the same time.

Data Storage: Can store temperature and humidity over 5 years;

On-site Alarm: On-site temperature and humidity deviation sound-light alarm, independent over-temperature alarm;

Remote Alarm: Remote SMS alarm (with power outage), multiple devices can share one mobile card;

Box Material:The inner liner material is stainless steel 304, and the outer shell material is quality steel plate.

Double Door structure:A toughened glass door is built in for easy observation; The outer door is completely closed to shield the influence of external light.

Double Protection: Double insurance and dry burning protection system; Equipped with independent overtemperature protection system, the power can be cut off automatically.

Safety Device: Compressor overheat protection, compressor overpressure protection, compressor overheat protection and fan overheat protection.

Installation Power: AC 220V± 10% 50HZ;

Working Environment: + 5 ~ 35 ℃ (best can control within 30 ℃, using the limit under the condition of control within 26 ℃);

Special Note: Consult the PDF and WORD ICONS below online. You can download the relevant information on this page.
