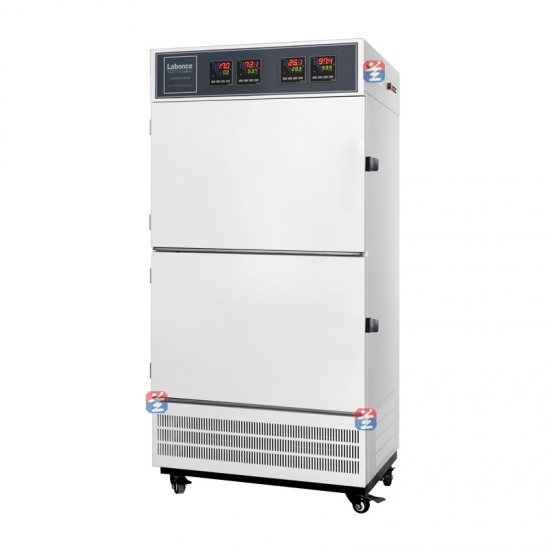

Medicine Stability Testing Chamber With good heat preservation

Humidity：40~95%RH

Capacity：200L~1000L

Item NO.:
200SD~620SD
Product Origin:
CHINA

Online consulting

Product introduction

Labonce-SD series two boxes of Medicine Stability Chambers, two boxes of independent control, using imported original quality components and manufacturing process, stable and reliable performance, suitable for GMP certification users.

Capacity: 200L~600L

Temperature Range: 10～65℃, Fluctuation:±0.5℃, Deviation: ±2.0℃

Humidity Range: 20～95%RH,Fluctuation:±3.0%RH, Deviation: ±3.0%RH

Controller: The original imported digital display meter controller, sensitive, small system error;

Humidity Sensor: The imported VAISALA capacitive humidity sensor is directly detected without maintenance.

Compressor: Imported full-closed compressor with long life and low noise;

Data Record:Equipped with a data acquisition system that meets the requirements of GMP and standard needle printer;

Data Copy: U disk storage, can store more than a year of temperature and humidity value;

Deviation alarm: High&low boundary deviation alarm for temperature&humidity；

Interior material: Mirror surface Stainless steel 304

External material: Steel powder coated

Dual protections: Independent overheat protection warning system
Safety device: Compressor and blower overheat protection system, Over temperature protection, overpressure &overload protection for compressor, Water scarcity protection

Power source: AC 220V±10% 50HZ

Ambient temperature: +5-35℃

Special Description: Click the PDF or WORD icon, you can download the catalog 。

MODEL	TEMP.RANGE (℃)	HUMI.RANGE (RH)	CAPACITY (L)	INTERNAL DIMEN. (mm) W×D×H	EXTERNAL DIMEN. (mm) W×D×H	POWER (kW)	TRAY	REMARKS

Labonce-200SD	10～65	40～95%	200	600×405×450	760×800×1820	2.0	4
Labonce-300SD	10～65	40～95%	300	680×500×460	840×870×1850	2.5	4
Labonce-520SD	10～65	40～95%	500	600×500×830	1560×870×1650	3.0	6
Labonce-620SD	10 ～ 65	40～ 95%	600	600×500×1000	1560×870×1780	3.2	6
